SELECT A DIAGRAM

01 - Cover

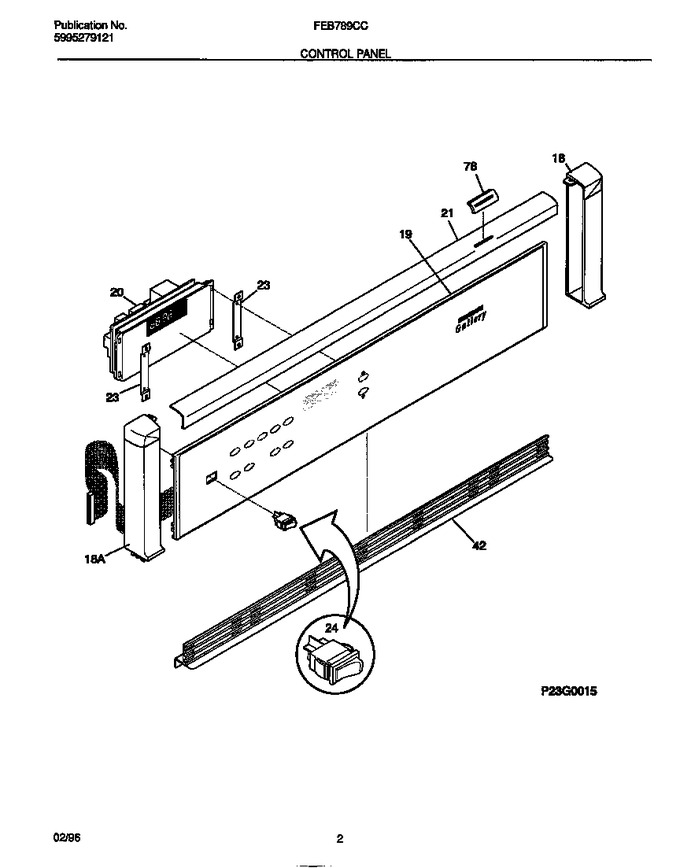

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5303311225		End Cap, Almond, Rh		Appelez-nous	-
18	5303311226		End Cap, Almond, Lh		Appelez-nous	-
19	318030002		Panel-control, Almond		Appelez-nous	-
20	5303311210		Clock/timer, Eoc		Appelez-nous	-
21	5303311227		Trim-canopy/shield, Almond		Appelez-nous	-
23	5303311211		Bracket-clock Mtg		Appelez-nous	-
24	316005608		Switch-rocker, Almond, Oven Light		Appelez-nous	-
42	5303317307		Screw, Vent Trim, 6-32 X 3/8, Almond, (2) (not Illustrat		Appelez-nous	-
42	5303318712		Trim-vent, Almond		Appelez-nous	-
78	5303302395		Cover, Oven Vent, Almond		Appelez-nous	-
*25280	5303300265		Screw, 8-18 X 1/2				$ 15.17
*25281	5303300414		Spacer, Cork & Rubber				$ 13.18
*25282	5303308450		Screw, 8 X 3/8		Appelez-nous	-
*25283	5303311528		Screw, Oval Hd, 20 X 5/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
