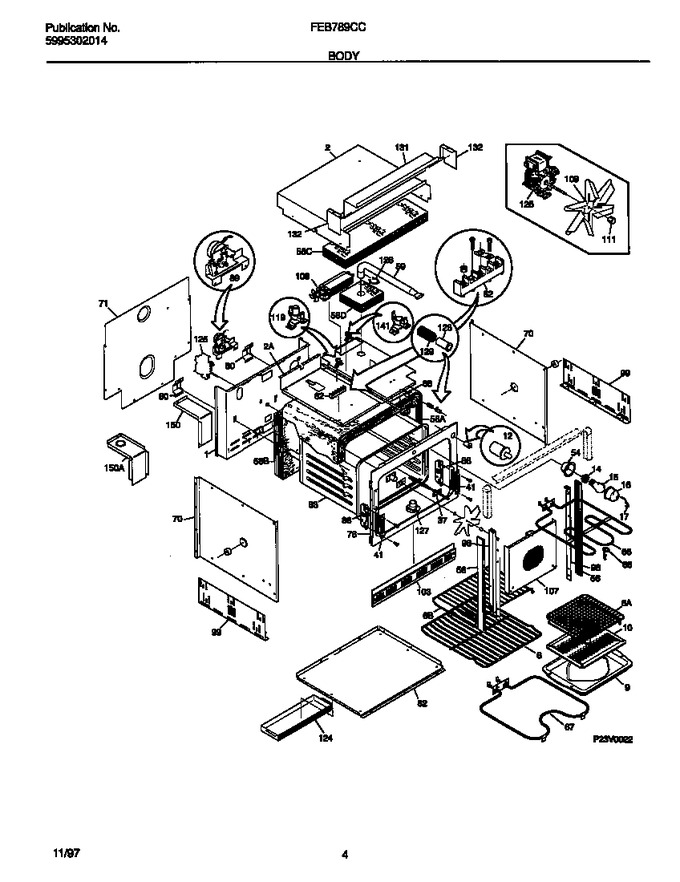

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Body
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066700 | Back-main |
|
- | |||||
| 2 | 318102000 | Shield-oven Top |
|
- | |||||
| 6 | 5303299719 | Rack-oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 5303302712 | Trim-bodyside, Almond |
|
- | |||||
| 56 | 5303320422 | Screw, 6-20 X 5/16, Side Trim, (4) (not Illustrated) |
|
$ 12.71 | |||||
| 59 | 318072510 | Tube-oven Vent |
|
$ 157.80 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 67 | 318255100 | Element-bake (Replaces: 5303299718) |
|
Immediately | $ 204.07 | ||||
| 68 | 5303307563 | Support-element |
|
- | |||||
| 71 | 318071100 | Shield-rear Wall |
|
- | |||||
| 76 | 318056104 | Front-oven |
|
- | |||||
| 76 | 318039513 | Bracket-trim (not Illustrated) |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 82 | 318071800 | Shield, Oven Bottom |
|
- | |||||
| 83 | 318089519 | Liner-oven Assy |
|
$ 228.80 | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 89 | 5303311223 | Motor-latch/lock |
|
- | |||||
| 99 | 318055420 | Support-adjustable |
|
$ 44.73 | |||||
| 103 | 318028802 | Trim-base, Small, Almond (not Illustrated) |
|
- | |||||
| 103 | 318028702 | Trim-base, Almond |
|
- | |||||
| 107 | 5303318711 | Cover,fan |
|
- | |||||
| 108 | 318073001 | Motor-fan |
|
- | |||||
| 109 | 5303311203 | Fan Blade |
|
$ 42.84 | |||||
| 119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| 124 | 318076900 | Box-vent |
|
- | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 131 | 318102200 | Cover-control Housing |
|
- | |||||
| 141 | 318005000 | Thermostat-safety |
|
- | |||||
| 150 | 318072206 | Bracket-support, Access Cover, Rh |
|
- | |||||
| *00125 | 3015722 | Clip-wire |
|
- | |||||
| *00126 | 131202300 | Screw, 8 X 5/8 (Replaces: 3131048) |
|
Immediately | $ 13.46 | ||||
| *00127 | 3201861 | Screw, 6 X 3/8, (4) |
|
$ 0.76 | |||||
| *00128 | 3201881 | Lockwasher |
|
- | |||||
| *00129 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *00130 | 08007817 | Spacer, (2) |
|
- | |||||
| *00131 | 318070700 | Cap, Top Panel, Rh |
|
$ 26.20 | |||||
| *00132 | 318070701 | Cap, Top Panel, Lh |
|
$ 31.55 | |||||
| *00133 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *00134 | 5303311528 | Screw, Oval Hd, 6-20 X 5/8, Black |
|
- | |||||
| *00135 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| *00136 | 318052058 | Harness-wiring, Main |
|
- | |||||
| *00137 | 318078511 | Box & Wires Assy |
|
- | |||||
| 111A | 5303311205 | Nut-fan Retainer |
|
- | |||||
| 111B | 5303322885 | Spacer (not Illustrated) |
|
- | |||||
| 125A | 5303311202 | Motor-convection |
|
$ 114.07 | |||||
| 125B | 5303320346 | Washer, Conv. Motor (not Illustrated) |
|
- | |||||
| 132A | 318101700 | End-cover, Control Hsg, Rh |
|
- | |||||
| 132B | 318101701 | End-cover, Control Hsg, Lh |
|
- | |||||
| 150A | 318072207 | Bracket-support, Access Cover, Lh |
|
- | |||||
| 2A | 318071500 | Shield-oven Top |
|
- | |||||
| 37A | 5303208888 | Probe-oven Temp |
|
- | |||||
| 37B | 318080000 | Plate, Oven Temp Probe (not Illustrated) |
|
- | |||||
| 58A | 5303311218 | Insulation, Oven Wrapper |
|
- | |||||
| 58B | 5303311214 | Insulation, Oven Back/door |
|
- | |||||
| 58C | 5303311219 | Insulation, Oven Top/back |
|
- | |||||
| 58D | 5303316994 | Insulation, Oven Vent |
|
- | |||||
| 6A | 5303311206 | Rack, Broiler Pan |
|
- | |||||
| 6B | 318025202 | Shelf,oven |
|
- | |||||
| 70A | 5303300142 | Shield-insulation |
|
- | |||||
| 70B | 318531800 | Spacer-oven Shield (not Illustrated) (Replaces: 318014700) |
|
$ 12.76 | |||||
| 88A | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 88B | 318013501 | Tube, Rod-latch (not Illustrated) |
|
- | |||||
| 98A | 318029900 | Trim-side, Inner, Rh |
|
- | |||||
| 98B | 318029901 | Trim-side, Inner, Lh |
|
- |
