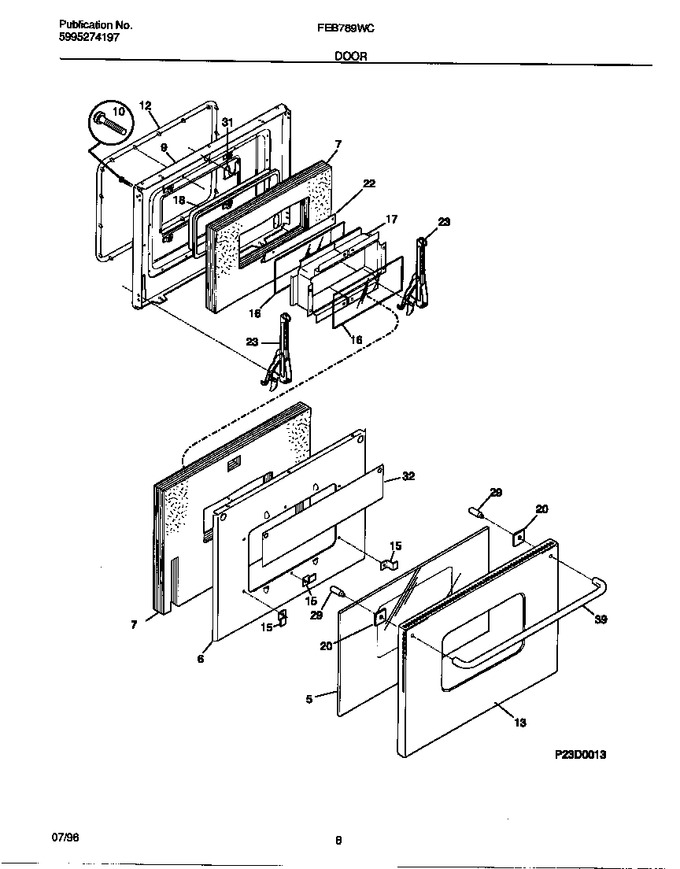

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	318041200		Glass-oven Door,black ,inner		Appelez-nous	-
5	5303316982		Tape,seal, (3) (not Illustrated)		Appelez-nous	-
6	318073501		Baffle-door		Appelez-nous	-
7	5303311214		Insulation, Oven Back/door		Appelez-nous	-
9	318048500		Liner-oven Door		Appelez-nous	-
10	5303316953		Screw-handle, (2)		Appelez-nous	-
12	318053100		Seal-oven Door				$ 317.89
13	318009200		Panel-oven Door,stainless		Appelez-nous	-
15	318091101		Bracket-glass, (3)		Appelez-nous	-
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318053000		Seal-rope		Appelez-nous	-
20	318086020		Spacer-handle,(2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
23	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
29	318014400		Spacer,door		Appelez-nous	-
31	318065100		Latch-door		Appelez-nous	-
32	318056700		Deflector, 4.5`` X 16.6``		Appelez-nous	-
39	318039800		Handle-door,stainless ,oven		Appelez-nous	-
*13412	3202113		Button, Plug		Appelez-nous	-
*13413	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*13414	5303300265		Screw, 8-18 X 1/2				$ 15.17
*13415	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*13416	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*13417	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*13418	5303300414		Spacer, Cork & Rubber				$ 13.18
