SELECT A DIAGRAM

01 - Cover


02 - Control Panel

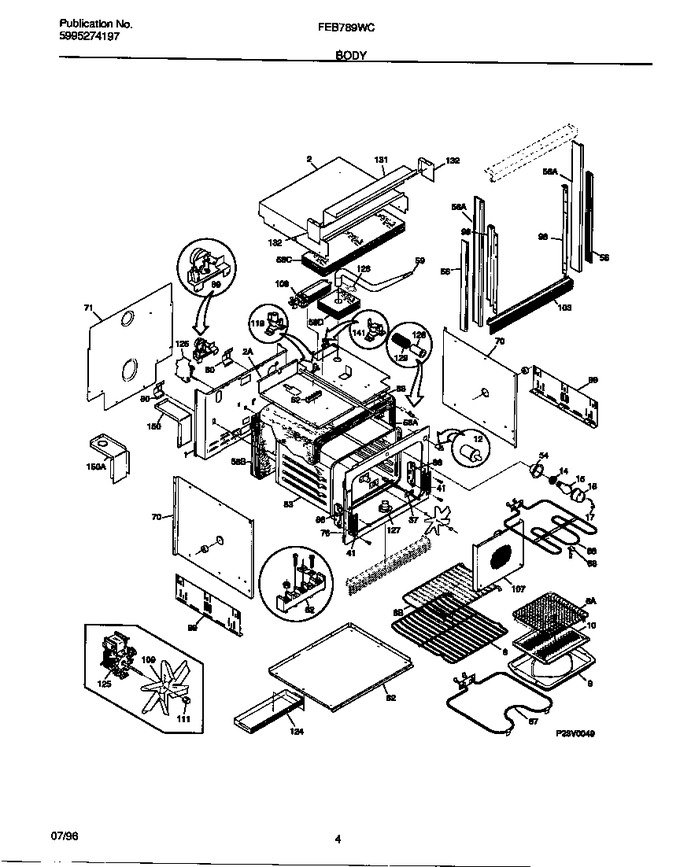

03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318066700		Back-main		Appelez-nous	-
2	318102000		Shield-oven Top		Appelez-nous	-
6	318025300		Rack,oven		Appelez-nous	-
9	5303310521		Pan-broiler		Appelez-nous	-
10	5303310520		Insert-broiler Pan		Appelez-nous	-
12	5303311157		Switch-door		Appelez-nous	-
14	316116400		Socket-light/lamp, Oven   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	3204483		Retainer-lens		Appelez-nous	-
28	3015722		Clip-wire		Appelez-nous	-
37	318080000		Plate, Oven Temp Probe (not Illustrated)		Appelez-nous	-
37	5303208888		Probe-oven Temp		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
56	5303276721		Trim-bodyside, Black, (2)		Appelez-nous	-
56	318029500		Trim-bodyside,stainless ,outer,rh		Appelez-nous	-
56	318029501		Trim-bodyside,stainless ,outer,lh		Appelez-nous	-
59	318072505		Tube-oven Vent		Appelez-nous	-
62	08002848		Screw, 10-24 X 29/32, Terminal Block (not Illustrated)		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
66	5303016247		Element, Broil				$ 223.97
67	318255100		Element-bake   (Replaces: 5303299718)			Immediately	$ 204.07
68	5303307563		Support-element		Appelez-nous	-
70	5303300142		Shield-insulation		Appelez-nous	-
71	318071100		Shield-rear Wall		Appelez-nous	-
76	318056101		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
82	318071800		Shield, Oven Bottom		Appelez-nous	-
83	5303311221		Liner-oven Assy		Appelez-nous	-
86	5303310524		Channel-hinge		Appelez-nous	-
88	318013501		Tube, Rod-latch (not Illustrated)		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
89	5303311223		Motor-latch/lock		Appelez-nous	-
98	318029801		Trim-side, Inner, Lh		Appelez-nous	-
98	318029800		Trim-side,inner,rh		Appelez-nous	-
99	318055400		Support-adjustable		Appelez-nous	-
103	5303316773		Trim-base, Black				$ 80.22
107	5303311224		Cover-fan		Appelez-nous	-
108	318073001		Motor-fan		Appelez-nous	-
109	5303311203		Fan Blade				$ 42.84
111	5303311205		Nut-fan Retainer		Appelez-nous	-
119	318004900		Switch,thermal				$ 60.25
124	318076900		Box-vent		Appelez-nous	-
125	5303311202		Motor-convection				$ 114.07
126	3016303		Clip-insulator Retainer		Appelez-nous	-
127	3205683		Adapter Assy		Appelez-nous	-
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
131	318102201		Cover-control Housing		Appelez-nous	-
132	318101701		End-cover, Control Hsg, Lh		Appelez-nous	-
132	318101700		End-cover, Control Hsg, Rh		Appelez-nous	-
141	318005000		Thermostat-safety		Appelez-nous	-
150	318072206		Bracket-support, Access Cover, Rh		Appelez-nous	-
*13405	3201881		Lockwasher		Appelez-nous	-
*13406	08002868		Screw 10 X 24 X 1/2				$ 14.18
*13407	08007817		Spacer, (2)		Appelez-nous	-
*13408	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*13409	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*13410	318052007		Harness-wiring		Appelez-nous	-
*13411	318078500		Box & Wires Assy		Appelez-nous	-
150A	318072207		Bracket-support, Access Cover, Lh		Appelez-nous	-
2A	318071500		Shield-oven Top		Appelez-nous	-
58A	5303311218		Insulation, Oven Wrapper		Appelez-nous	-
58B	5303311214		Insulation, Oven Back/door		Appelez-nous	-
58C	5303311219		Insulation, Oven Back/top		Appelez-nous	-
58D	5303316994		Insulation, Oven Vent		Appelez-nous	-
6A	5303311206		Rack, Broiler Pan		Appelez-nous	-
6B	318025200		Shelf,oven		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
