SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Body


05 - Door

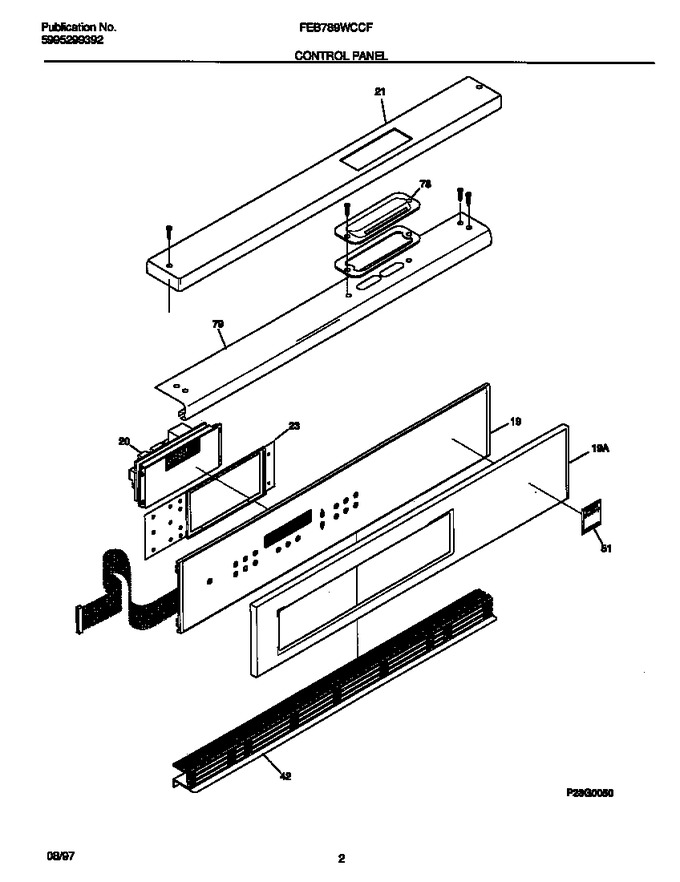

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318041700		Panel-decorative,stainless ,with Nameplate		Appelez-nous	-
19	318030205		Panel-control, Black		Appelez-nous	-
20	318010700CP		Clock/timer, Eoc   (Replaces: 318010700)		Appelez-nous	-
20	318111500		Relay, Convection, Oven Light, (2) (not Illustrated)		Appelez-nous	-
21	318029602		Trim-top, Stainless Steel		Appelez-nous	-
21	5303307406		Screw, Top Trim, 6-32 X 3/8, Black, (2) (not Illustrated				$ 11.29
23	318111600		Bracket, Clock/relay		Appelez-nous	-
42	318027310		Trim,vent		Appelez-nous	-
51	316082300		Nameplate, Black		Appelez-nous	-
78	318037200		Cover,oven Vent ,stainless		Appelez-nous	-
78	316037700		Seal, Vent Cover (not Illustrated)		Appelez-nous	-
78	316037800		Tape, Vent Cover (not Illustrated)		Appelez-nous	-
79	318028300		Trim-top, Inner		Appelez-nous	-
*32560	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*32561	5303300265		Screw, 8-18 X 1/2				$ 15.17
*32562	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*32563	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*32564	5303300414		Spacer, Cork & Rubber				$ 13.18
*32565	5303311318		End Connector		Appelez-nous	-
*32566	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27

    View Diagram in Separate Window       Print Part List
