SELECT A DIAGRAM
01 - Cover
02 - Control Panel

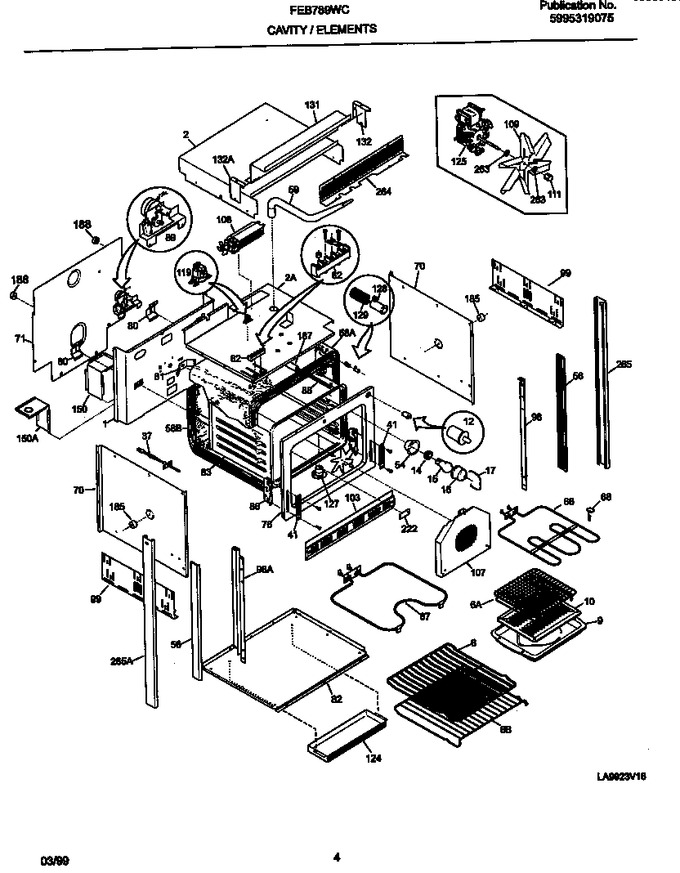

03 - Body
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066700 | Back-main |
|
- | |||||
| 2 | 318102000 | Shield-oven Top |
|
- | |||||
| 2 | 318071500 | Shield-oven Top |
|
- | |||||
| 6 | 318025200 | Shelf,oven |
|
- | |||||
| 6 | 5303311206 | Rack, Broiler Pan |
|
- | |||||
| 6 | 318025300 | Rack,oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer Lenz |
|
- | |||||
| 28 | 3015722 | Clip-wire |
|
- | |||||
| 37 | 316217002 | Probe-oven Temp (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 318145502 | Trim-bodyside, Black, (2) |
|
- | |||||
| 58 | 5303311218 | Insulation, Oven Wrapper |
|
- | |||||
| 58 | 5303311219 | Insulation, Oven Top/back |
|
- | |||||
| 59 | 318072511 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 5303322963 | Element-broil |
|
- | |||||
| 67 | 318255100 | Element-bake (Replaces: 5303299718) |
|
Immediately | $ 204.07 | ||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 71 | 318071100 | Shield-rear Wall |
|
- | |||||
| 76 | 318056104 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 81 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 82 | 318071800 | Shield, Oven Bottom |
|
- | |||||
| 83 | 318089519 | Liner-oven Assy |
|
$ 228.80 | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 89 | 5304404899 | Motor-latch |
|
- | |||||
| 89 | 318120702 | Switch-latch |
|
$ 111.67 | |||||
| 98 | 318029801 | Trim-side, Inner, Lh |
|
- | |||||
| 98 | 318029800 | Trim-side,inner,rh |
|
- | |||||
| 99 | 318055420 | Support-adjustable |
|
$ 44.73 | |||||
| 103 | 5303316773 | Trim-base, Black |
|
$ 80.22 | |||||
| 103 | 318028800 | Trim-base,under Counters ,black ,under Counters |
|
$ 125.16 | |||||
| 107 | 5303318711 | Cover,fan |
|
- | |||||
| 108 | 318073001 | Motor-fan |
|
- | |||||
| 109 | 5303311203 | Fan Blade |
|
$ 42.84 | |||||
| 110 | 5303322885 | Spacer |
|
- | |||||
| 111 | 5303311205 | Nut-fan Retainer |
|
- | |||||
| 119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| 124 | 318076902 | Box-vent |
|
- | |||||
| 125 | 5303311202 | Motor-convection |
|
$ 114.07 | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 131 | 318102203 | Cover-fan |
|
- | |||||
| 132 | 318101700 | End-cover, Control Hsg, Rh |
|
- | |||||
| 132 | 318101701 | End-cover, Control Hsg, Lh |
|
- | |||||
| 150 | 318072206 | Bracket-support, Access Cover, Rh |
|
- | |||||
| 150 | 318072207 | Bracket-support, Access Cover, Lh |
|
- | |||||
| 185 | 318531800 | Spacer-oven Shield (Replaces: 318014700) |
|
$ 12.76 | |||||
| 187 | 318013501 | Tube, Rod-latch |
|
- | |||||
| 188 | 08007817 | Spacer, (2) |
|
- | |||||
| 222 | 318080000 | Plate,oven Temp Probe |
|
- | |||||
| 263 | 5303320346 | Washer,conv. Motor |
|
- | |||||
| 264 | 318143811 | Xx<hidden Wires Shie |
|
- | |||||
| 265 | 318029500 | Trim-bodyside,stainless ,outer,rh |
|
- | |||||
| 265 | 318029501 | Trim-bodyside,stainless ,outer,lh |
|
- | |||||
| *53853 | 5303308449 | Fastener |
|
- | |||||
| *53854 | 5303320422 | Screw,6-20 X 5/16 ,side Trim ,(4) |
|
$ 12.71 | |||||
| *53855 | 5303302745 | Screw <10-16x-1-1/8> |
|
$ 8.35 | |||||
| *53856 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *53857 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *53858 | 5303324184 | Screw-8 X 5/16 |
|
Immediately | $ 14.18 | ||||
| *53859 | 318078511 | Box & Wires Assy |
|
- | |||||
| *53860 | 5304407813 | Washer |
|
- | |||||
| *53861 | 5303300265 | Screw,8-18 X 1/2 ,chrome |
|
$ 15.17 | |||||
| *53862 | 5303288565 | Screw, Switch Mtg., 8-32 X 3/16 (Replaces: 5303323134) |
|
$ 3.12 | |||||
| *53863 | 131202300 | Screw, 8 X 5/8 (Replaces: 3131048) |
|
Immediately | $ 13.46 | ||||
| *53864 | 3201881 | Lockwasher |
|
- | |||||
| *53865 | 5303311528 | Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black |
|
- | |||||
| *53866 | 318083109 | Wiring Harness |
|
- |
