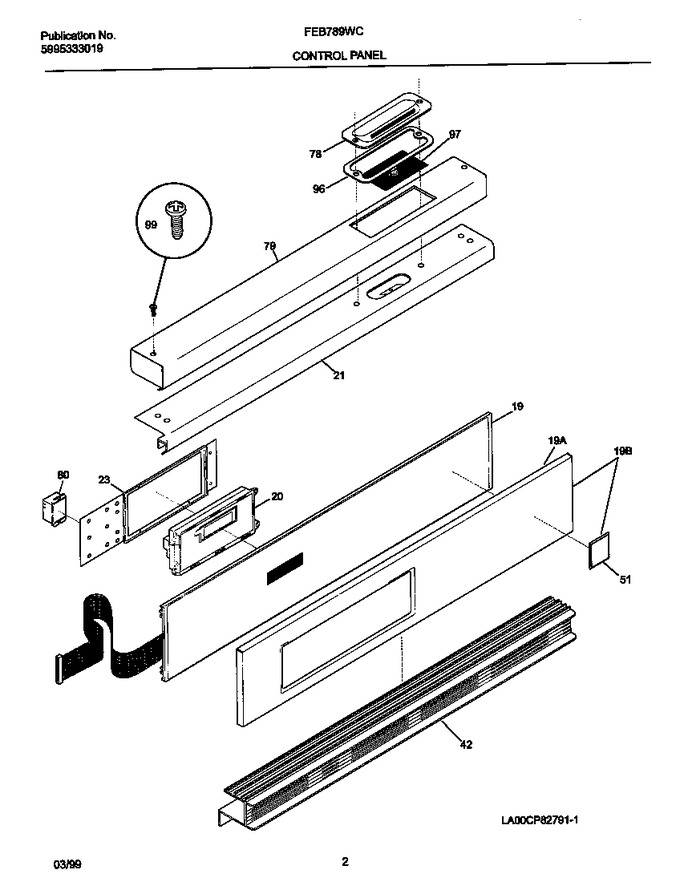

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030205		Panel-control, Black		Appelez-nous	-
19	318041700		Panel-decorative,stainless ,with Nameplate		Appelez-nous	-
20	318010700CP		Clock/timer, Eoc   (Replaces: 318010700)		Appelez-nous	-
21	318028300		Trim-top, Inner		Appelez-nous	-
23	318111602		Bracket-timer		Appelez-nous	-
42	318027310		Trim,vent		Appelez-nous	-
51	316082300		Nameplate, Black		Appelez-nous	-
78	318037200		Cover,oven Vent ,stainless		Appelez-nous	-
79	318029602		Trim-top, Stainless Steel		Appelez-nous	-
80	318111500		Relay,convection ,oven Light ,(2)		Appelez-nous	-
89	318095956		Motor-latch Assy   (Replaces: 318095921)			Immediately	$ 143.83
96	316037700		Seal,vent Cover		Appelez-nous	-
97	316037800		Tape,vent Cover		Appelez-nous	-
99	5303307406		Screw,6-32 X 3/8 ,(2)				$ 11.29
*05720	3201861		Screw, 6 X 3/8				$ 0.76
*05721	08002868		Screw 10 X 24 X 1/2				$ 14.18
*05722	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*05723	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*05724	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
