View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

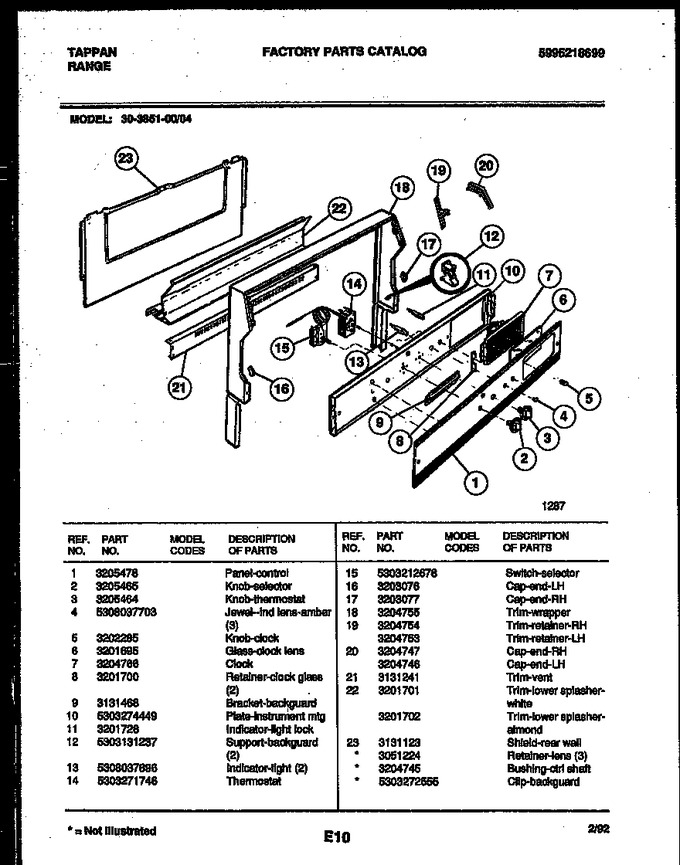

02 - Backguard
03 - Cooktop Parts
04 - Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
08 - Burner Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205478 | Panel-control |
|
- | |||||
| 2 | 3205465 | Knob-selector |
|
- | |||||
| 3 | 3205464 | Knob Thermostat |
|
- | |||||
| 4 | 5308037703 | Jewel--ind Lens-amber (3) |
|
- | |||||
| 5 | 3202285 | Knob-clock |
|
- | |||||
| 6 | 3201695 | Glass-clock Lens |
|
- | |||||
| 7 | 3204766 | Clock |
|
- | |||||
| 8 | 3201700 | Retainer, Clock Glass, (2) |
|
- | |||||
| 9 | 3131468 | Bracket, Backguard |
|
- | |||||
| 10 | 5303274449 | Plate-instrument Mtg |
|
- | |||||
| 11 | 3201728 | Indicator-light Lock |
|
- | |||||
| 12 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 13 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 14 | 5303271746 | Thermostat |
|
$ 414.28 | |||||
| 15 | 5303212678 | Switch Selector |
|
- | |||||
| 16 | 3203076 | Cap End-lh |
|
- | |||||
| 17 | 3203077 | Cap End-rh |
|
- | |||||
| 18 | 3204755 | Trim, Wrapper |
|
- | |||||
| 19 | 3204754 | Trim-retainer-rh |
|
- | |||||
| 20 | 3204747 | Cap-end Rh |
|
- | |||||
| 21 | 3131241 | Trim-vent |
|
- | |||||
| 22 | 3201702 | Trim-lower Splasher (almond) |
|
- | |||||
| 23 | 3131123 | Shield, Rear Wall |
|
- | |||||
| *64632 | 3051224 | Retainer-lens (3) |
|
- | |||||
| *64633 | 5303272555 | Clip-backguard |
|
- | |||||
| *64633 | 3204745 | Bushing-ctrl Shaft |
|
- | |||||
| 19A | 3204753 | Trim-retainer-lh |
|
- | |||||
| 20A | 3204746 | Cap-end Lh |
|
- |
