New Model Search:

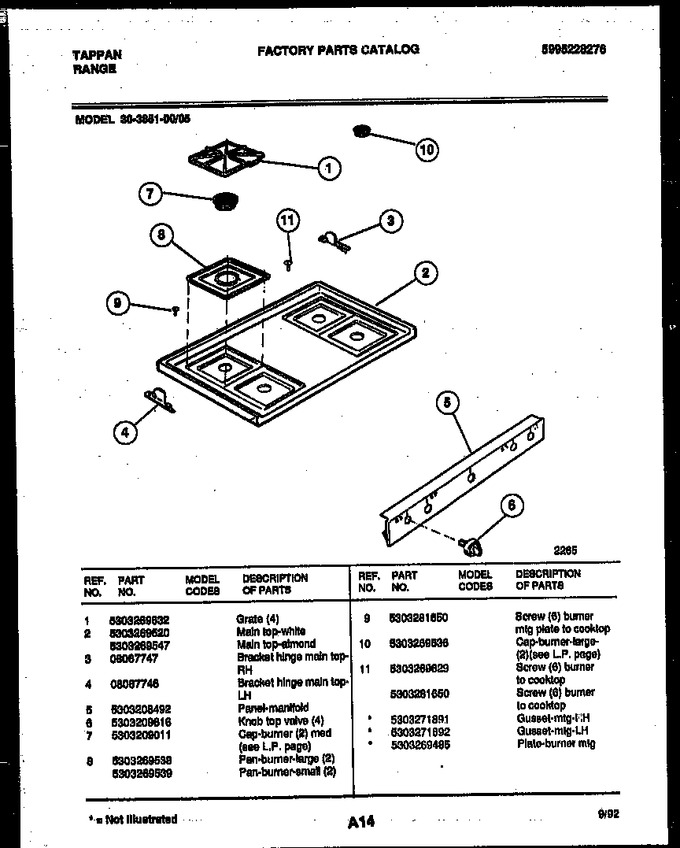

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318228310 | Grate (4) (Replaces: 5303269632) |
|
Immediately | $ 22.91 | ||||
| 2 | 5303269547 | Main Top-almond |
|
- | |||||
| 3 | 08067747 | Bracket-hinge,main Top Rh |
|
- | |||||
| 4 | 08067746 | Bracket-hinge,main Top Lh |
|
- | |||||
| 5 | 5303208492 | Panel, Manifold |
|
- | |||||
| 6 | 5303209616 | Knob-top Valve, (4) |
|
- | |||||
| 7 | 5303209011 | Cap-burner-(2) Med See Lp Page |
|
- | |||||
| 8 | 5303269539 | Pan-burner-small (2) |
|
$ 71.51 | |||||
| 8 | 5303269538 | Pan-burner-large (2) |
|
- | |||||
| 9 | 5303281650 | Screw (6) Burner Mtg Plate To Cooktop |
|
- | |||||
| 10 | 5303269536 | Cap-burner-large (2) See Lp Page |
|
- | |||||
| 11 | 5303281650 | Screw (6) Burner To Cooktop |
|
- | |||||
| 11 | 5303269629 | Screw (6) Burner To Cooktop |
|
- | |||||
| *79688 | 5303271891 | Gusset-mtg Rh |
|
- | |||||
| *79688 | 5303271892 | Gusset-mtg Lh |
|
- | |||||
| *79688 | 5303269485 | Plate-burner Mtg |
|
- |
