SELECT A DIAGRAM
01 - Body
02 - Control Panel

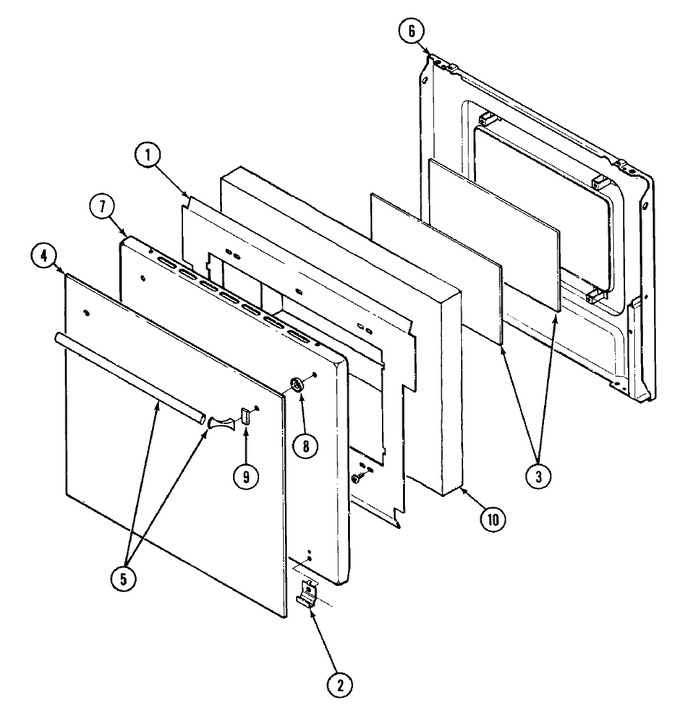

03 - Door Assembly-lower (series 01)
04 - Door Assembly-upper
05 - Door Assembly-upper
06 - Door-lower (series 10)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 01 |
|
Immediately | $ 12.62 | |||
| 1 | 3601F103-51 | Baffle, Door | 01 |
|
- | ||||
| 2 | 3819F010-71 | Clip,glass Retainer (wht) | 01 |
|
- | ||||
| 3 | 7902P035-60 | Glass, Door Inner | 01 |
|
- | ||||
| 4 | 7902P333-60 | Glass, Outer (wht) | 01 |
|
- | ||||
| 5 | 7701P086-60 | Handle, Door (wht) | 01 |
|
- | ||||
| 6 | 7101P276-60 | Screw (blk) | 01 |
|
- | ||||
| 6 | 2402W132-19 | Lining, Door | 01 |
|
- | ||||
| 7 | 7208P001-60 | Seal, Glass | 01 |
|
- | ||||
| 7 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 7 | 7212P007-60 | Seal, Door (vertical) | 01 |
|
$ 47.10 | ||||
| 7 | 2401F054-71 | Panel, Door | 01 |
|
- | ||||
| 7 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) | 01 |
|
$ 105.81 | ||||
| 8 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 01 |
|
$ 13.08 | ||||
| 9 | 8010P077-60 | Spacer, Handle (wht) | 01 |
|
- | ||||
| 10 | 7002P019-60 | Insulation, Door Lower | 01 |
|
- |
