SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Upper Cavity / Elements


07 - Lower Cavity / Elements

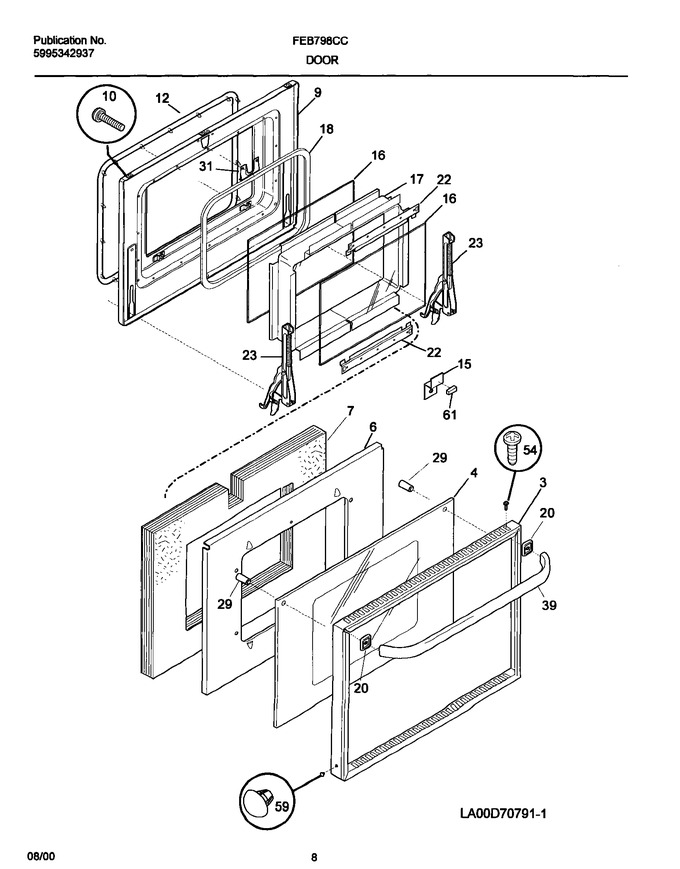

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026600		Trim,oven Door ,black		Appelez-nous	-
4	318051600		Glass-oven Door, Black, Outer		Appelez-nous	-
6	318073502		Shield-wool				$ 23.68
7	5303311214		Insulation,oven Door		Appelez-nous	-
9	318048503		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle 10-24 X 2-3/16				$ 12.71
12	318053100		Seal-oven Door				$ 317.89
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318053000		Seal-rope		Appelez-nous	-
20	318014300		Spacer-handle,black				$ 36.44
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303310506		Hinge-oven Door		Appelez-nous	-
29	5303210003		Spacer-handle Mtg		Appelez-nous	-
31	318065102		Latch-door				$ 58.81
39	316091109		Handle-door, Met 114		Appelez-nous	-
54	5303308456		Screw-8-18 X 17/32				$ 10.06
59	3202113		Button, Plug		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303308450		Screw, 8 X 3/8		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	53033211311		Screw, 8 X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
