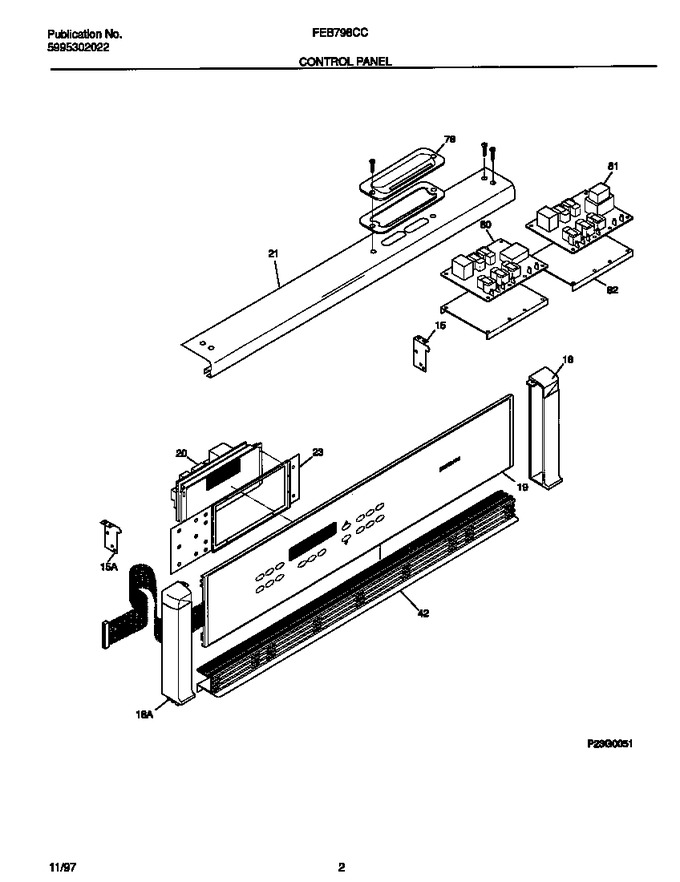

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302286		Support-backguard, Rh		Appelez-nous	-
15	5303302287		Support-backguard, Lh		Appelez-nous	-
18	5303311231		End Cap, Black, Rh		Appelez-nous	-
18	5303311232		End Cap, Black, Lh		Appelez-nous	-
19	318030015		Panel-control, Black		Appelez-nous	-
21	5303307406		Screw, Top Trim, 6-32 X 3/8, Black, (2) (not Illustrated				$ 11.29
21	5303300968		Trim-canopy/shield, Black		Appelez-nous	-
42	5303302298		Trim-vent, Black		Appelez-nous	-
78	318036900		Cover, Oven Vent, Black		Appelez-nous	-
80	318022001		Board-relay			Immediately	$ 489.91
81	318022002		Board-relay, Transformer				$ 482.74
82	318023600		Support, Relay Board, (2)		Appelez-nous	-
*85400	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*85401	5303300265		Screw, 8-18 X 1/2				$ 15.17
*85402	5303300414		Spacer, Cork & Rubber				$ 13.18
*85403	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*85404	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*85405	5303317199		Support, Snap-in, (3)				$ 36.75
20A	318010501		Clock/timer, Eoc				$ 666.75
20B	5303288566		Screw-bracket, Clock (not Illustrated)   (Replaces: 5303320848)				$ 2.12
23A	318015110		Bracket-clock Mtg		Appelez-nous	-
23B	5303320666		Spacer-bracket Relay (not Illustrated)		Appelez-nous	-
