SELECT A DIAGRAM

01 - Cover

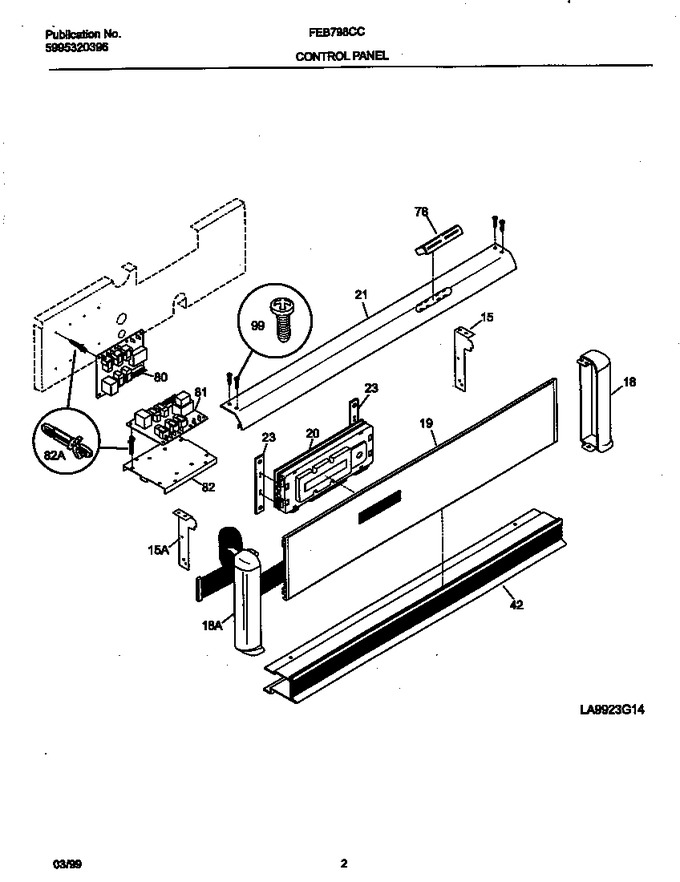

02 - Control Panel


03 - Upper Body


04 - Lower Body


05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302286		Support-backguard, Rh		Appelez-nous	-
15	5303302287		Support-backguard, Lh		Appelez-nous	-
18	5303311231		End Cap, Black, Rh		Appelez-nous	-
18	5303311232		End Cap, Black, Lh		Appelez-nous	-
19	318030015		Panel-control, Black		Appelez-nous	-
20	318010501		Clock/timer, Eoc				$ 666.75
21	5303300968		Trim-canopy/shield, Black		Appelez-nous	-
23	318015110		Bracket-clock Mtg		Appelez-nous	-
42	5303316983		Trim-vent, Black				$ 150.16
78	318036900		Cover, Oven Vent, Black		Appelez-nous	-
80	318022002		Board-relay, Transformer				$ 482.74
81	318022001		Board-relay			Immediately	$ 489.91
82	318023600		Support, Relay Board, (2)		Appelez-nous	-
82	5303317199		Support, Snap-in, (3)				$ 36.75
99	5303307406		Screw,6-32 X 3/8 ,(2)				$ 11.29
*69120	5303323136		Screw-ground		Appelez-nous	-
*69121	3201861		Screw, 6 X 3/8				$ 0.76
*69122	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12

    View Diagram in Separate Window       Print Part List
