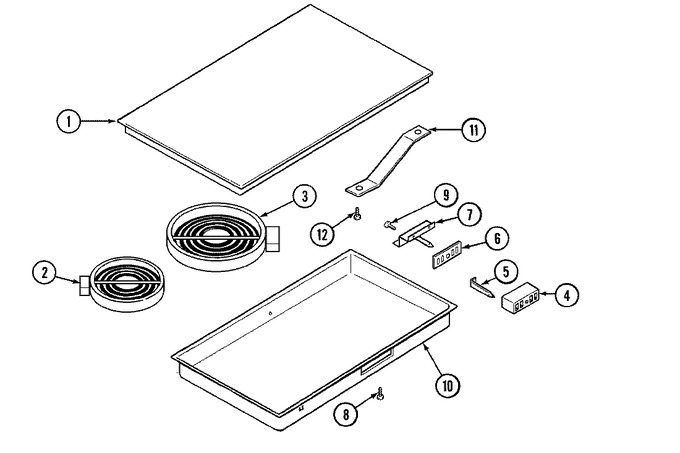

01 - Glass Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002538 | Top, Main (wht) | 11 |
|
- | ||||
| 2 | 71001182 | Wire, Natural | 11 |
|
- | ||||
| 2 | W10823702 | Element (6`` Radiant) 1200w (Replaces: 71002433) | 11 |
|
$ 310.65 | ||||
| 3 | W10823693 | Element (8`` Radiant) 1800 Watt (Replaces: 71002434) | 11 |
|
Immediately | $ 205.87 | |||
| 4 | WPY708730 | Block, Terminal (Replaces: Y708730) | 11 |
|
Immediately | $ 87.44 | |||
| 5 | Y708572 | Spade, Contact | 11 |
|
Immediately | $ 11.34 | |||
| 6 | 708834 | Insulator, Contact Spade | 11 |
|
$ 13.49 | ||||
| 7 | Y700648 | Bracket, Retaining Assy. | 11 |
|
- | ||||
| 8 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 9 | WP488234 | Screw (Replaces: 708861) | 11 |
|
$ 6.07 | ||||
| 10 | 71002539 | Pan, Cartridge Assy. | 11 |
|
- | ||||
| 11 | Y04100171 | Stop, Anti Rotation | 11 |
|
- | ||||
| 12 | WP59002061 | Screw (Replaces: Y707172) | 11 |
|
$ 6.98 | ||||
| NI | 71002540 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 16000327 | Guide, Quick Ref. - Maytag | 11 |
|
- |
