SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Upper Cavity / Elements


07 - Lower Cavity / Elements


09 - Door

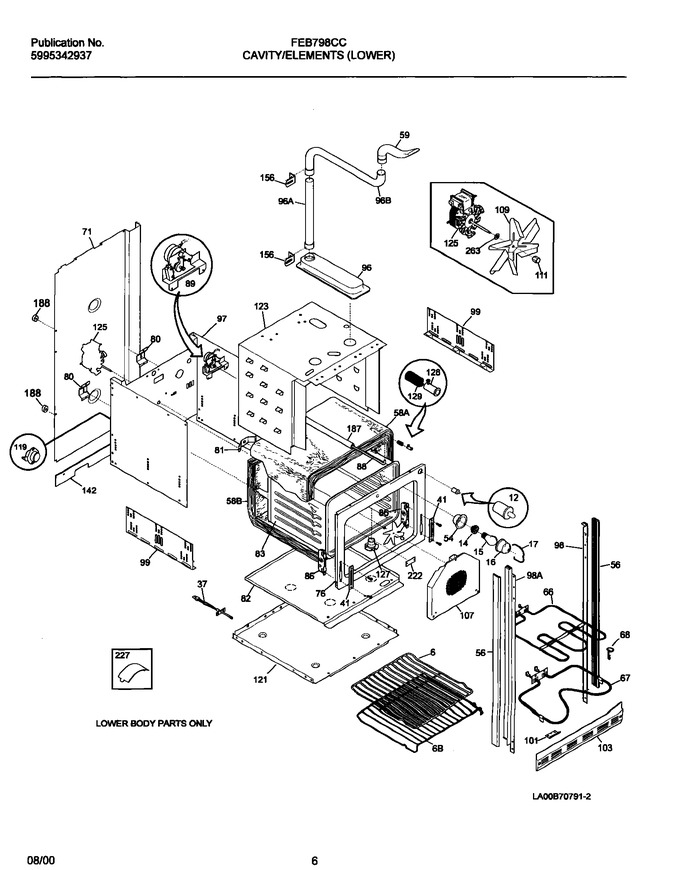

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5303299719		Rack-oven		Appelez-nous	-
14	316116400		Socket-light/lamp   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer-lens		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
56	5303302282		Trim-bodyside,white		Appelez-nous	-
59	5303300951		Tube-oven Vent		Appelez-nous	-
66	5303322963		Element-broil		Appelez-nous	-
68	5304403015		Support-element				$ 35.04
71	318071120		Shield-wire		Appelez-nous	-
76	318056104		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
81	5303320846		Plate,oven Mtg				$ 51.50
82	5303304699		Shield-insulation		Appelez-nous	-
83	318089519		Liner-oven Assy				$ 228.80
86	5303310524		Receptacle,hinge		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
89	318120710		Switch Latch		Appelez-nous	-
96	5303317197		Duct,oven Vent ,assy		Appelez-nous	-
97	318066604		Wrapper,back & Sides		Appelez-nous	-
98	318029332		Trim-side Inner Rh		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
101	318039512		Bracket-trim,white		Appelez-nous	-
103	318028701		Trim-base, White				$ 153.72
107	5303318711		Cover,fan		Appelez-nous	-
109	5303311203		Fan Blade				$ 42.84
111	5303311205		Nut-fan Retainer		Appelez-nous	-
121	318145002		Wrapper,base		Appelez-nous	-
123	318071441		Shield-insulation Top		Appelez-nous	-
127	318072801		Adaptor Assy		Appelez-nous	-
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
142	318054900		Support		Appelez-nous	-
156	5303317198		Bracket-oven Vent		Appelez-nous	-
187	318013501		Tube, Rod-latch		Appelez-nous	-
188	08007817		Spacer		Appelez-nous	-
222	318080000		Plate Hole Convection Element		Appelez-nous	-
227	5303323955		Clip-retainer		Appelez-nous	-
263	5303322885		Spacer		Appelez-nous	-
58A	5303311218		Insulation, Oven Wrapper		Appelez-nous	-
58B	5303311219		Insulation,oven Back		Appelez-nous	-
6B	318025202		Shelf,oven		Appelez-nous	-
96A	3016325		Duct,oven Vent ,center		Appelez-nous	-
96B	3016327		Duct-vent Pipe		Appelez-nous	-
98A	318029333		Trim,side ,inner,lh		Appelez-nous	-
F119	318004900		Switch,thermal				$ 60.25
F12	318394803		Switch-light   (Replaces: 318089910)			Immediately	$ 44.23
F125	5303311202		Motor-convection				$ 114.07
F37	316217002		Probe-oven Temp   (Replaces: 316111203)			Immediately	$ 61.23
F67	318255100		Element-bake   (Replaces: 5303299718)			Immediately	$ 204.07
F89	318095956		Motor-latch   (Replaces: 318095913)			Immediately	$ 143.83
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 29/32				$ 13.46
NI	5303325980		Screw, 10-32 X 7/16				$ 12.76
NI	5304407813		Washer		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5303311528		Screw, 6-20 X 5/8		Appelez-nous	-
NI	318078501		Box & Wires Assy		Appelez-nous	-
