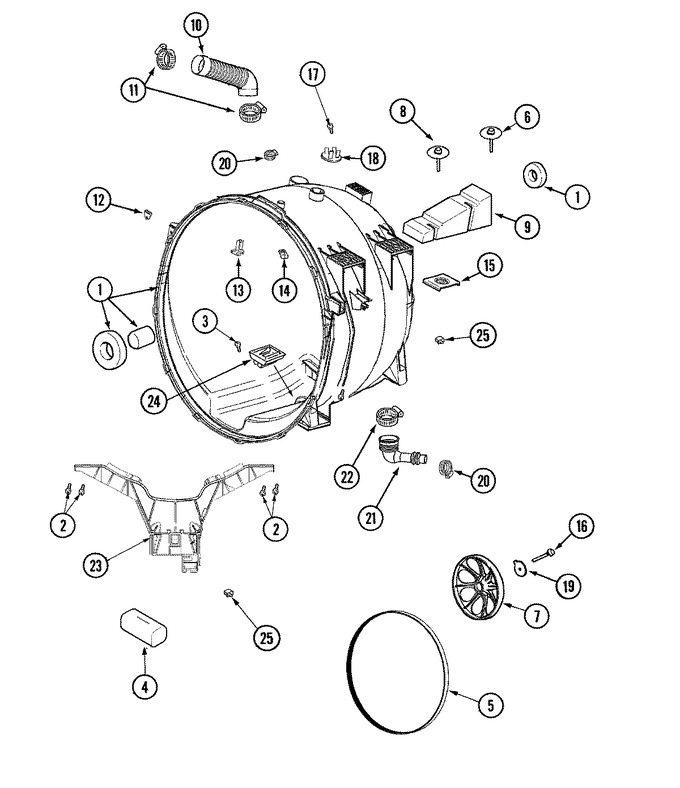

05 - Outer Tub


06 - Spinner Assy & Outer Tub Cover


07 - Supplemental Information


08 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22004465		Outer Tub Assy, As Pack	10			$ 1,380.36
2	33002973		Screw, No.9-15 X 1.00 Hx Ws	10	Appelez-nous	-
3	22002059		Screw	10			$ 5.33
4	22003827		Cushion	10	Appelez-nous	-
5	12001788		Belt Kit, Drive   (Replaces: 12001435)	10		Immediately	$ 37.69
6	22003828		Plated Bolt, Double Sems Su	10	Appelez-nous	-
7	22002315		Pulley, Spinner   (Replaces: 22001998)	10			$ 157.26
8	22003828		Plated Bolt, Double Sems Su	10	Appelez-nous	-
9	22002102		Weight, Counter Balance	10	Appelez-nous	-
10	WP22002083		Hose, Injector   (Replaces: 22002083)	10			$ 124.55
11	WP616099		Clamp, Stepless   (Replaces: 22003627)	10		Immediately	$ 7.03
12	22002103		Clip, U	10	Appelez-nous	-
13	22004310		Deflector, Water   (Replaces: 22002959)	10			$ 13.68
14	22003326		Clip, Heater Harness To Tub	10	Appelez-nous	-
15	22002065		Nut, Counter Balance	10	Appelez-nous	-
16	WP22003937		Screw, Spinner   (Replaces: 22002057)	10			$ 7.43
17	22002061		Screw	10	Appelez-nous	-
18	22002797		Clip, Hose (saddle Horn)	10	Appelez-nous	-
19	WP22003936		Washer (1 1/4``)   (Replaces: 22003936)	10			$ 7.20
20	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
21	22003262		Hose, Tub To Pump	10			$ 27.27
22	WP696392		Clamp, Sump Hose   (Replaces: 22002053)	10			$ 7.31
23	22004472		Bracket, Lower	10			$ 77.47
24	22003710		Sump Cap W/ Labyrinth Feature	10			$ 34.38
25	WP22002044		Switch, Tub Displacement   (Replaces: 22002044)	10			$ 80.94
