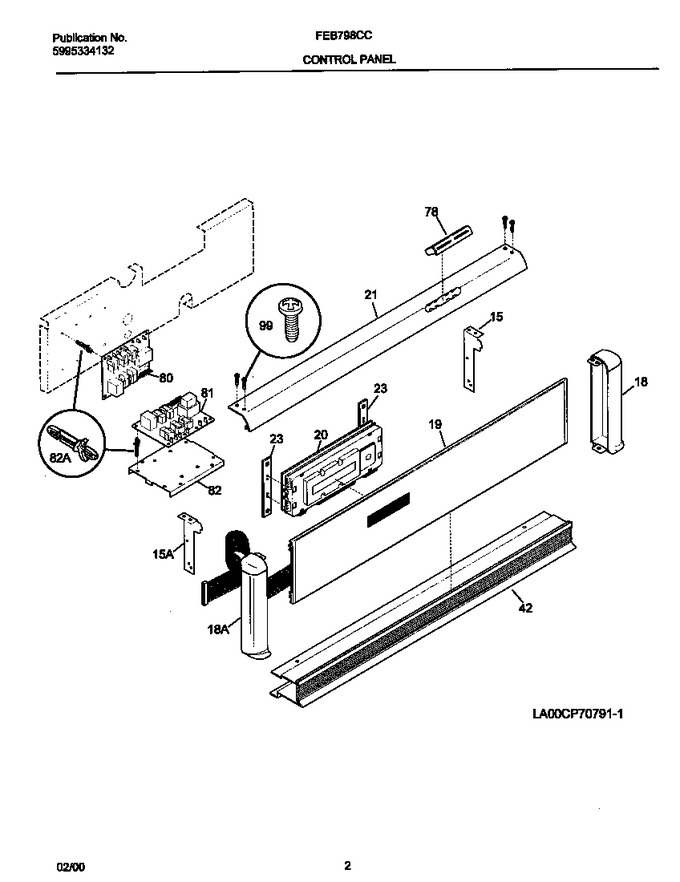

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302286		Support-backguard, Rh		Appelez-nous	-
15	5303302287		Support-backguard, Lh		Appelez-nous	-
18	5303311209		End Cap, White, Lh		Appelez-nous	-
18	5303311208		End Cap, White, Rh		Appelez-nous	-
19	318030016		Panel-control, White		Appelez-nous	-
20	318010501		Clock/timer, Eoc				$ 666.75
21	5303302283		Trim-canopy/shield, White		Appelez-nous	-
23	318015110		Bracket-clock Mtg		Appelez-nous	-
42	5303318709		Trim-vent, White		Appelez-nous	-
78	318036901		Cover, Oven Vent, White		Appelez-nous	-
80	318022002		Relay Board,transformer				$ 482.74
81	318022001		Relay Board			Immediately	$ 489.91
82	318023600		Support, Relay Board, (2)		Appelez-nous	-
82	5303317199		Support, Snap-in, (3)				$ 36.75
99	5303316956		Screw,6-32 X 3/8 ,white ,(2)		Appelez-nous	-
*70200	3201861		Screw, 6 X 3/8				$ 0.76
*70201	08002868		Screw 10 X 24 X 1/2				$ 14.18
*70202	318082905		Wiring Harness		Appelez-nous	-
*70203	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*70204	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*70205	5303300414		Spacer, Cork & Rubber				$ 13.18
*70206	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
*70207	5303308450		Screw, 8 X 3/8		Appelez-nous	-
*70208	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
*70209	5303320666		Spacer-bracket Relay		Appelez-nous	-
*70210	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*70211	5303323136		Screw-ground		Appelez-nous	-
*70212	318083181		Wiring Harness		Appelez-nous	-
*70213	318083182		Wiring Harness		Appelez-nous	-
