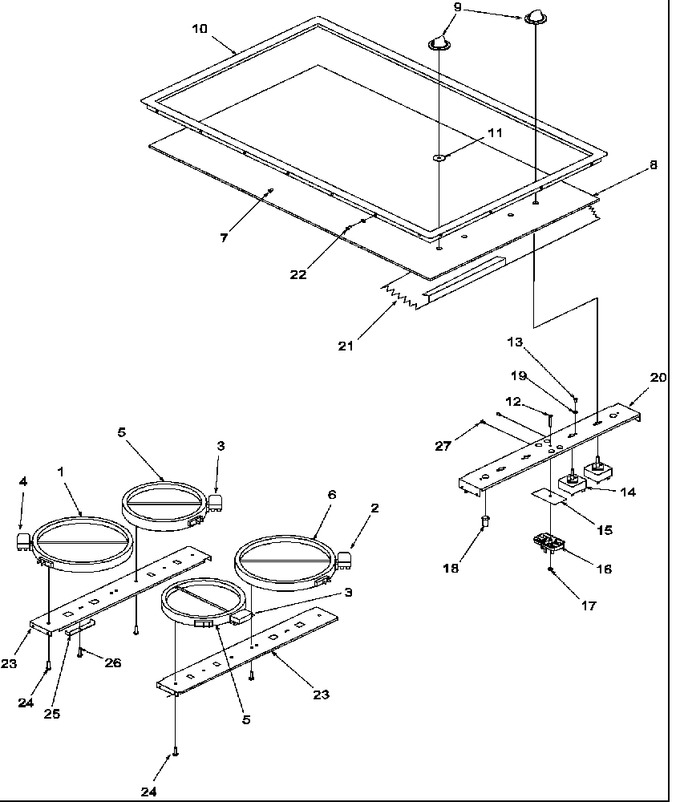

01 - Cooktop Assy


02 - Fuse Box Assy--canadian Units Only


03 - Heater Box Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10252502		Heater,haloring(1800w)assy.		Appelez-nous	-
3	10061012		Limiter-temp, Small		Appelez-nous	-
3	10061002		Limiter		Appelez-nous	-
4	10061003		Limiter, Temp, Large		Appelez-nous	-
5	W10823699		Element-quick Start   (Replaces: D8598805)			Immediately	$ 145.67
5	10252501		Heater, Haloring Small		Appelez-nous	-
6	W10823694		Heater, Dual   (Replaces: 10008402)			Immediately	$ 320.29
7	M0272803		Lock Washer		Appelez-nous	-
8	R0156827		Ceramic Cooktop		Appelez-nous	-
9	10431206		Knob, Dual Element (blk)		Appelez-nous	-
9	10431205		Knob, Control (blk)		Appelez-nous	-
9	WPD8598001		Knob, Control   (Replaces: 10262301)				$ 42.61
10	D8601102		Frame, Trim		Appelez-nous	-
11	B5037602		Cover, Control Hole K				$ 5.02
12	M0202521		Screw		Appelez-nous	-
13	W11214483		Screw, Mach   (Replaces: M0202321)				$ 12.62
14	C2740705		Switch, Dual Infinite		Appelez-nous	-
15	A4402901		Insulation, Ind. Light		Appelez-nous	-
16	C2702603		Light, Indicator		Appelez-nous	-
17	M0281002		Nut A		Appelez-nous	-
18	10035901		Light, Indicator		Appelez-nous	-
19	M0272803		Lock Washer		Appelez-nous	-
20	D8596804		Control Mtg Bracket		Appelez-nous	-
21	M0275042		Tape, Vinyl Foam, Roll		Appelez-nous	-
22	W11245710		Screw, Sm (stnls)   (Replaces: M0210417)			Immediately	$ 12.65
23	D8596905		Bracket, Mtg. Element		Appelez-nous	-
24	M0228307		Screw, Shoulder		Appelez-nous	-
25	B5001201		Spring		Appelez-nous	-
26	M0217224		Screw		Appelez-nous	-
27	M0211519		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
