01 - Cooktop Assy


02 - Fuse Box Assy--canadian Units Only


03 - Heater Box Assy

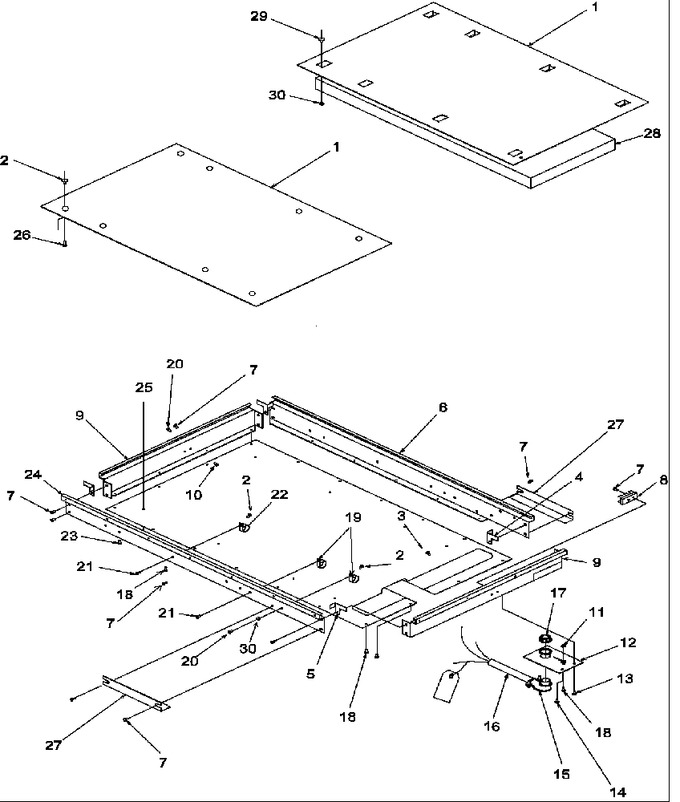

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10159703		Heater Box Baffle		Appelez-nous	-
2	M0282005		Nut K				$ 7.07
4	B5036901		Bracket, Corner		Appelez-nous	-
5	B5036902		Bracket, Corner		Appelez-nous	-
6	D8596512		Heat Box Side Pnt		Appelez-nous	-
7	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
8	B5677203		Terminal Block		Appelez-nous	-
9	D8596703		Heat Box End Pnt		Appelez-nous	-
11	M0282402		Usr 0041847		Appelez-nous	-
12	B5036301		Plate, Conduit		Appelez-nous	-
13	M0227817		Screw		Appelez-nous	-
15	M0321505		Connector, Conduit		Appelez-nous	-
16	D8597201		Harness, Conduit		Appelez-nous	-
17	M0327601		Bushing, Conduit		Appelez-nous	-
18	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
19	M0102305		Clamp, Tube		Appelez-nous	-
20	WP488234		Screw   (Replaces: M0234422)				$ 6.07
21	M0202521		Screw		Appelez-nous	-
22	M0102303		Clamp		Appelez-nous	-
24	D8596511		Heat Box Side Pnt		Appelez-nous	-
25	D8597006		Access Panel		Appelez-nous	-
28	C2741705		Insulation		Appelez-nous	-
29	A4539601		Pop Rivet		Appelez-nous	-
30	M0272803		Lock Washer		Appelez-nous	-
NI	M0275044		Tape, Vinyl		Appelez-nous	-
