SELECT A DIAGRAM

01 - Cooktop Assy

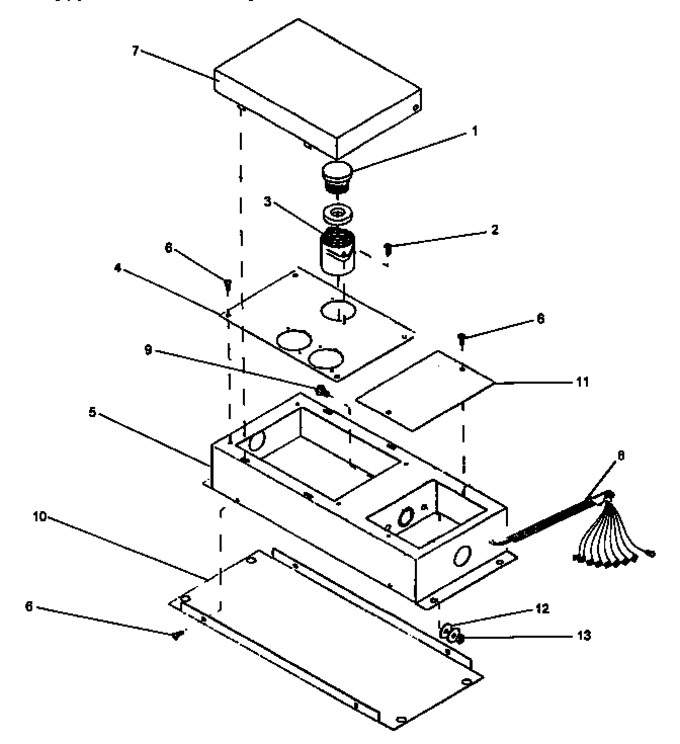

02 - Fuse Box


03 - Heater Box Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0042189		Fuse 20 Amp		Appelez-nous	-
2	0041786		Tapng Screw 6 32x1/2 Ph P Hd		Appelez-nous	-
3	Y0042187		Fuse Holder Std Base		Appelez-nous	-
4	Y0040677		Fuse Plate, 4-hole		Appelez-nous	-
5	Y0040676		Fuse Box W/a		Appelez-nous	-
6	Y0041789		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
7	Y0040672		Fuse Cover		Appelez-nous	-
8	Y0314041		Conduit		Appelez-nous	-
9	Y0041766		Screw, No.10-24x1/2 (pan Ph Hd)		Appelez-nous	-
10	Y0040673		Fuse Box Back		Appelez-nous	-
11	Y0301874		Module Plate		Appelez-nous	-
12	Y0041942		Flat Washer Lo-boy		Appelez-nous	-
13	M0282009		Nut   (Replaces: Y0097885)				$ 12.06
NI	0314281		Ass`y, Fuse Box		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
