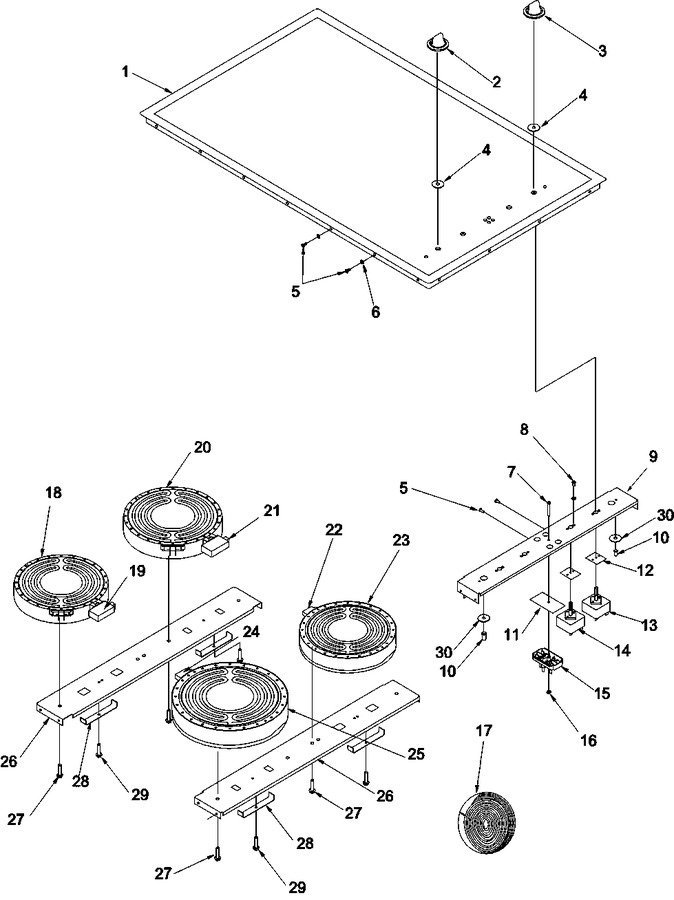

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028B		Assy, Frame & Glass (blk)		Appelez-nous	-
2	31760601B		Knob, Infinite Sw (black)				$ 25.02
3	31760603B		Knob, Dual Infin Sw (black)		Appelez-nous	-
4	Y0307427		Cover, Hole-electric				$ 7.75
7	M0202521		Screw		Appelez-nous	-
9	307423B		Bracket,cont Mtg.		Appelez-nous	-
10	Y0307458		Light, Indicator		Appelez-nous	-
11	0307444		Insulation, Ind. Light		Appelez-nous	-
12	Y0041991		Switch Gasket Xet-490		Appelez-nous	-
13	W11121639		Switch, Infinite   (Replaces: Y0309862)				$ 149.17
14	0309550		Switch, Dual Infinite		Appelez-nous	-
15	Y0307442		Light, Indicator		Appelez-nous	-
16	M0281002		Nut A		Appelez-nous	-
18	31794701		Element, Ribbon (1200w)		Appelez-nous	-
19	31846201		Limiter		Appelez-nous	-
20	W10823726		Element, Dual Radiant 6/9``   (Replaces: 31852001)				$ 308.80
21	0316689		Limiter-dual		Appelez-nous	-
22	31846201		Limiter		Appelez-nous	-
23	W10823699		Element, Ribbon (1500w)   (Replaces: 31794601)			Immediately	$ 145.67
24	31846201		Limiter		Appelez-nous	-
25	W10823708		Element, Ribbon (2000w)   (Replaces: 31794501)				$ 307.60
26	307425B		Bracket, Element		Appelez-nous	-
27	31750715		Screw, Shoulder Ab 6-20 X .825		Appelez-nous	-
28	Y0306683		Spring, Element		Appelez-nous	-
29	31750425		Screw, No.8-18 X 3/8 Pph		Appelez-nous	-
30	31750017		Washer, Spacer Ind. Light		Appelez-nous	-
