01 - Cooktop Assy

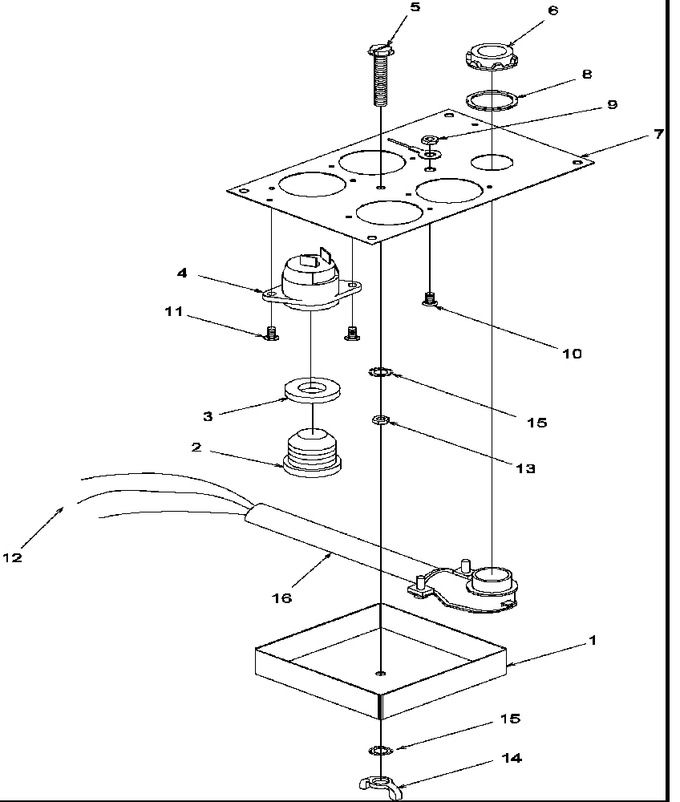

02 - Fuse Box Assy--canadian Units Only
03 - Heater Box Assy
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10415102 | Cover, Fuse |
|
- | |||||
| 2 | M0800301 | Fuse 20 Amp |
|
- | |||||
| 3 | A4428502 | Fuse Plug, Restricter |
|
- | |||||
| 4 | D8607301 | Fuse Holder Std Base |
|
- | |||||
| 5 | M0202311 | Screw- Mach |
|
- | |||||
| 6 | M0327601 | Bushing, Conduit |
|
- | |||||
| 7 | 10415001 | Plate, Fuse |
|
- | |||||
| 8 | M0321505 | Connector, Conduit |
|
- | |||||
| 9 | M0282402 | Usr 0041847 |
|
- | |||||
| 10 | M0227817 | Screw |
|
- | |||||
| 11 | M0217224 | Screw |
|
- | |||||
| 12 | 10415201 | Harness-conduit |
|
- | |||||
| 13 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 14 | M0287303 | Palnut |
|
- | |||||
| 15 | M0272802 | Washer Lock |
|
- | |||||
| 16 | M0325501 | Insulator, Pod K |
|
- | |||||
| NI | 10415401 | Assy, Fuse Plate |
|
- |
