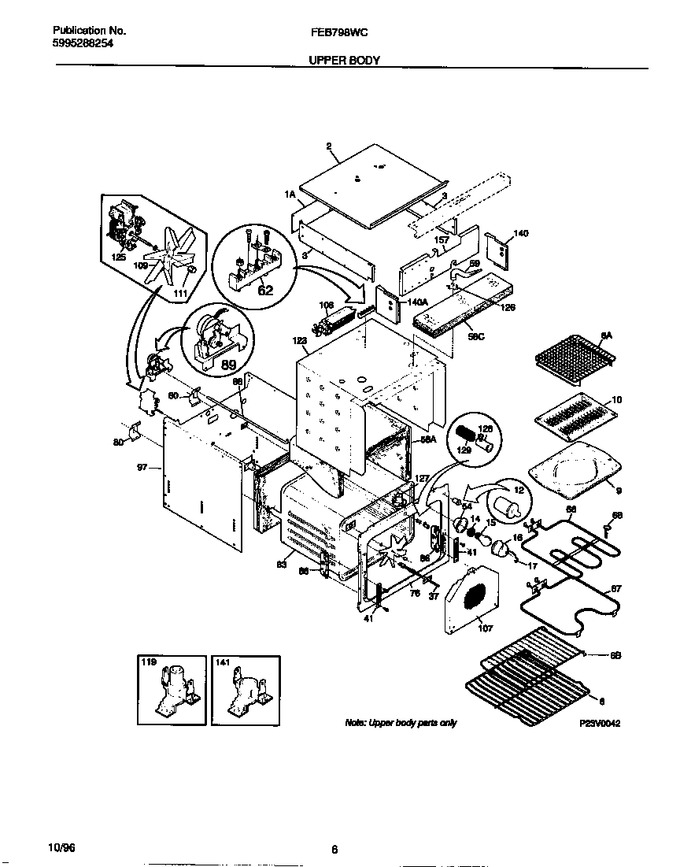

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318071000 | Back,main ,upper |
|
- | |||||
| 2 | 318070201 | Shield-oven Top |
|
- | |||||
| 3 | 318070601 | Panel,bodyside ,upper,rh |
|
- | |||||
| 3 | 318070600 | Panel,bodyside ,upper,lh |
|
- | |||||
| 6 | 5303311206 | Rack, Broiler Pan |
|
- | |||||
| 6 | 318025200 | Shelf,oven |
|
- | |||||
| 6 | 318025300 | Rack,oven |
|
- | |||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 5303311157 | Switch-door |
|
- | |||||
| 14 | 316116400 | Socket-light/lamp, Large/small, Oven (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light, Large/small, Oven |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens, Large/small, Oven (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens, Large/small, Oven |
|
- | |||||
| 37 | 5303208888 | Probe-oven Temp |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 58 | 5303311219 | Insulation, Oven Back/top |
|
- | |||||
| 58 | 5303311218 | Insulation, Oven Wrapper |
|
- | |||||
| 59 | 3016331 | Tube,oven Vent |
|
- | |||||
| 59 | 318024100 | Bracket-vent Tube (not Illustrated) |
|
- | |||||
| 62 | 08002848 | Screw, 10-24 X 29/32, Terminal Block (not Illustrated) |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 5303016247 | Element, Broil |
|
$ 223.97 | |||||
| 67 | 318255100 | Element-bake (Replaces: 5303299718) |
|
Immediately | $ 204.07 | ||||
| 68 | 5303307563 | Support-element |
|
- | |||||
| 76 | 318056104 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 83 | 318089510 | Liner-oven Assy |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 88 | 318013501 | Tube, Rod-latch (not Illustrated) |
|
- | |||||
| 89 | 5303317196 | Motor-latch/lock |
|
- | |||||
| 97 | 318066500 | Wrapper, Back & Sides |
|
- | |||||
| 107 | 5303318711 | Cover,fan |
|
- | |||||
| 108 | 318073000 | Motor-blower |
|
- | |||||
| 109 | 318137400 | Fan Blade |
|
- | |||||
| 111 | 318137600 | Spacer (not Illustrated) |
|
- | |||||
| 111 | 318137700 | Nut-fan Retainer |
|
- | |||||
| 119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| 123 | 318071400 | Shield-insulation, Top & Sides |
|
- | |||||
| 125 | 5303311202 | Motor-convection (Replaces: 318137100) |
|
$ 114.07 | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 140 | 318042701 | Retainer-insulation, Lh |
|
- | |||||
| 140 | 318042700 | Retainer-insulation, Rh |
|
- | |||||
| 141 | 318005100 | Thermostat-safety |
|
- | |||||
| 157 | 318071600 | Divider, Upper Oven |
|
- |
