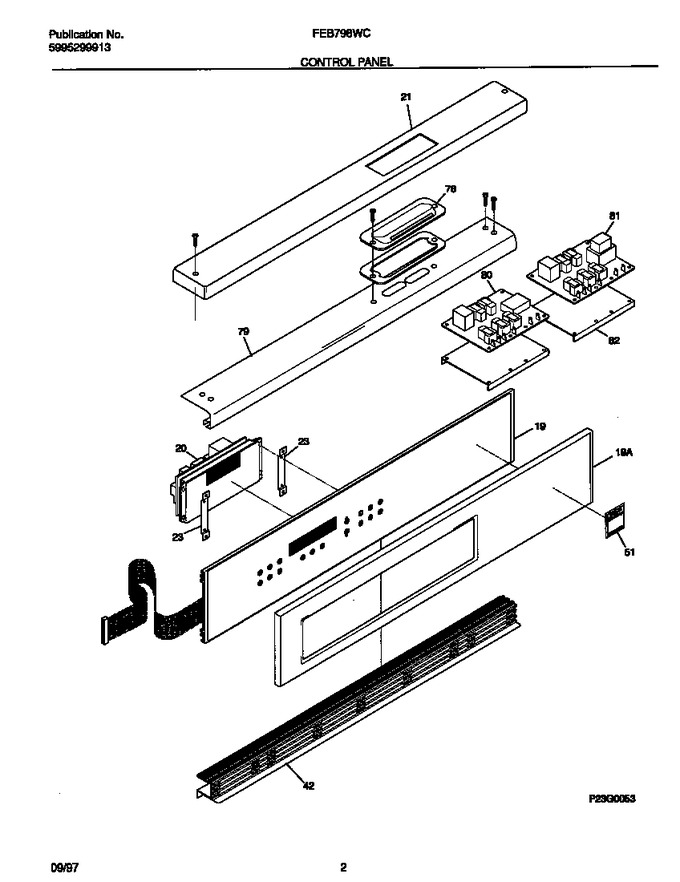

02 - Control Panel


03 - Lower Body


04 - Upper Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318041701		Panel-decorative,stainless ,with Nameplate		Appelez-nous	-
19	318030209		Panel-control				$ 146.00
20	318010501		Clock/timer, Eoc				$ 666.75
21	5303307406		Screw, Top Trim, 6-32 X 3/8, Black, (2) (not Illustrated				$ 11.29
21	318029603		Trim,top		Appelez-nous	-
23	5303288566		Screw-bracket, Clock (not Illustrated)   (Replaces: 5303320848)				$ 2.12
23	318015110		Bracket-clock Mtg		Appelez-nous	-
42	318027310		Trim,vent		Appelez-nous	-
51	316082300		Nameplate, Black		Appelez-nous	-
78	318037200		Cover,oven Vent ,stainless		Appelez-nous	-
78	316037700		Seal, Vent Cover (not Illustrated)		Appelez-nous	-
78	316037801		Tape, Vent Cover (not Illustrated)		Appelez-nous	-
79	318028301		Trim-top,inner		Appelez-nous	-
80	318022001		Board-relay			Immediately	$ 489.91
80	5303320666		Spacer-bracket Relay (not Illustrated)		Appelez-nous	-
81	318022002		Board-relay, Transformer				$ 482.74
82	318023600		Support, Relay Board, (2)		Appelez-nous	-
*11880	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*11881	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*11882	5303300265		Screw, 8-18 X 1/2				$ 15.17
*11883	5303300414		Spacer, Cork & Rubber				$ 13.18
*11884	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*11885	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*11886	5303317199		Support, Snap-in, (3)				$ 36.75
