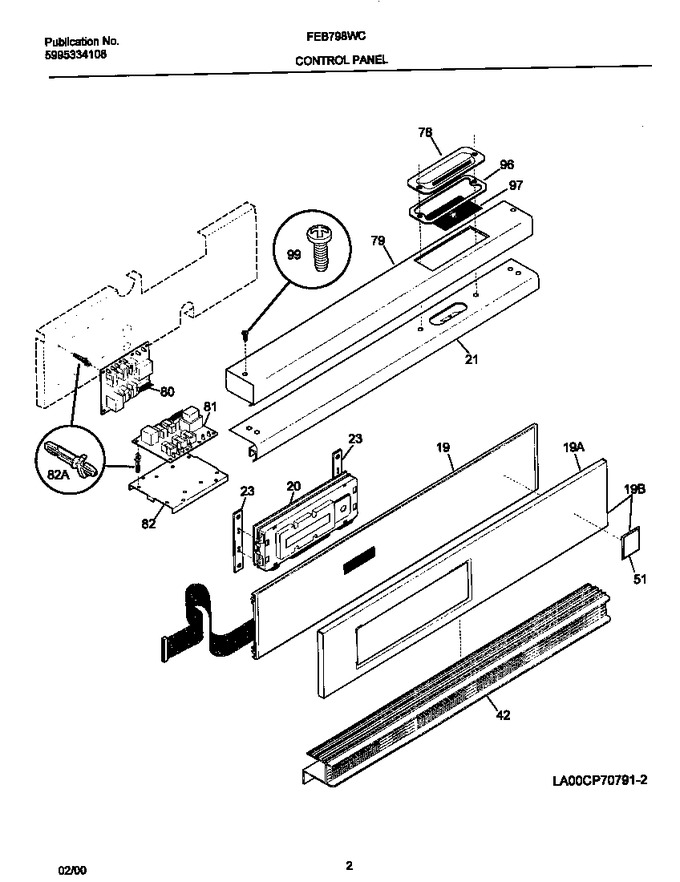

02 - Control Panel


03 - Upper Cavity/elements


04 - Lower Cavity/elements


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318041701		Panel-decorative,stainless ,with Nameplate		Appelez-nous	-
19	318030209		Panel-control				$ 146.00
19	318041801		Panel-control,metal		Appelez-nous	-
20	318010501		Clock/timer, Eoc				$ 666.75
21	318028301		Trim-top,inner		Appelez-nous	-
23	318015110		Bracket-clock Mtg		Appelez-nous	-
42	318027310		Trim,vent		Appelez-nous	-
51	316082300		Nameplate, Black		Appelez-nous	-
78	318037200		Cover,oven Vent ,stainless		Appelez-nous	-
79	318029603		Trim,top		Appelez-nous	-
80	318022001		Relay Board			Immediately	$ 489.91
81	318022002		Relay Board,transformer				$ 482.74
82	318023600		Support, Relay Board, (2)		Appelez-nous	-
82	5303317199		Support, Snap-in, (3)				$ 36.75
96	316037700		Seal,vent Cover		Appelez-nous	-
97	316037801		Tape,vent Cover		Appelez-nous	-
99	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*17600	3201861		Screw, 6 X 3/8				$ 0.76
*17601	08002868		Screw 10 X 24 X 1/2				$ 14.18
*17602	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*17603	318082905		Wiring Harness		Appelez-nous	-
*17604	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*17605	5303300414		Spacer, Cork & Rubber				$ 13.18
*17606	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
*17607	5303308450		Screw, 8 X 3/8		Appelez-nous	-
*17608	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
*17609	5303320666		Spacer-bracket Relay		Appelez-nous	-
*17610	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
*17611	5303323136		Screw-ground		Appelez-nous	-
*17612	318083181		Wiring Harness		Appelez-nous	-
*17613	318083182		Wiring Harness		Appelez-nous	-
