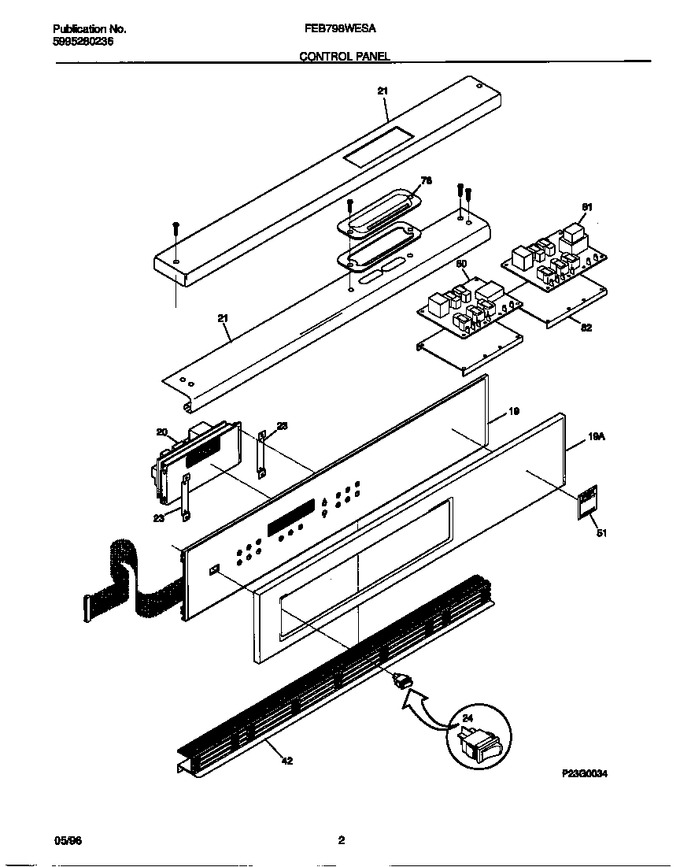

02 - Control Panel


03 - Lower Body


04 - Upper Body


05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318041704		Panel-decorative, Stainless		Appelez-nous	-
19	318030204		Panel-control, White		Appelez-nous	-
20	318010500		Clock/timer, Eoc		Appelez-nous	-
21	318029603		Trim,top		Appelez-nous	-
23	318015100		Bracket-clock Mtg		Appelez-nous	-
24	5304527842		Switch-rocker, White   (Replaces: 316005607)			Immediately	$ 16.13
42	5303307406		Screw, Vent Trim, 6-32 X 3/8, Black, (2) (not Illustrated)				$ 11.29
42	318027311		Trim-vent, Aluminum, Center		Appelez-nous	-
78	318037200		Cover,oven Vent ,stainless		Appelez-nous	-
78	316037700		Seal, Vent Cover (not Illustrated)		Appelez-nous	-
78	316037801		Tape, Vent Cover (not Illustrated)		Appelez-nous	-
79	318028301		Trim-top,inner		Appelez-nous	-
80	318022001		Board-relay			Immediately	$ 489.91
81	318022002		Board-relay, Transformer				$ 482.74
82	5303317199		Support, Snap-in, (16) (not Illustrated)				$ 36.75
82	318023600		Support, Relay Board, (2)		Appelez-nous	-
*16760	5303300265		Screw, 8-18 X 1/2				$ 15.17
*16761	5303300414		Spacer, Cork & Rubber				$ 13.18
*16762	5303308450		Screw, 8 X 3/8, Clock/door		Appelez-nous	-
*16763	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
