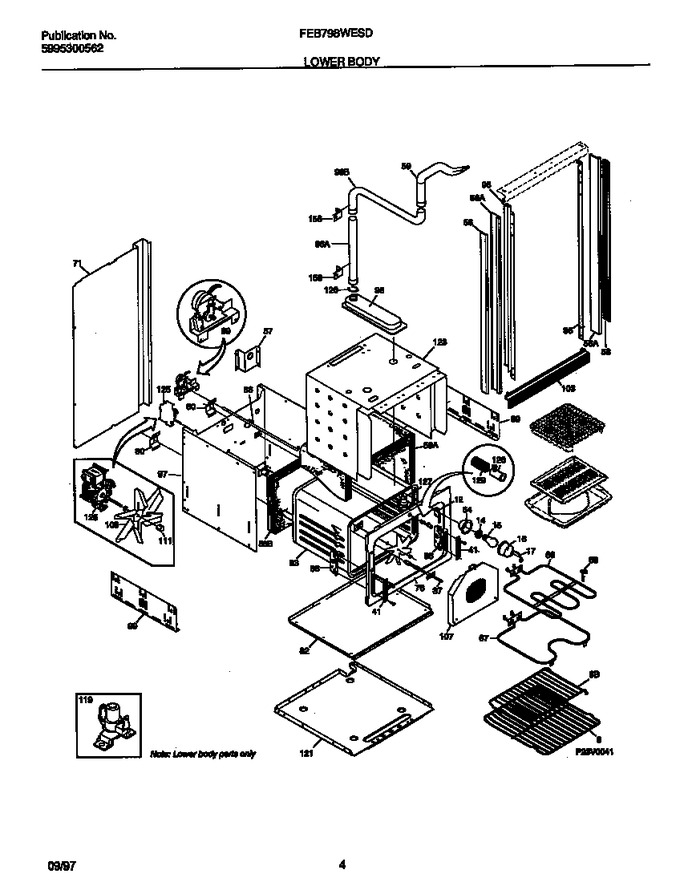

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318025300		Rack,oven		Appelez-nous	-
6	318025200		Shelf,oven		Appelez-nous	-
12	5303275924		Switch-door				$ 92.03
14	316116400		Socket-light/lamp   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	3204483		Retainer-lens		Appelez-nous	-
37	5303208888		Probe-oven Temp		Appelez-nous	-
37	318080000		Plate, Oven Temp Probe (not Illustrated)		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
56	5303320422		Screw, 6-20 X 5/16, Side Trim, (4) (not Illustrated)				$ 12.71
56	318145503		Trim-bodyside, (2)		Appelez-nous	-
56	318029503		Trim-bodyside,stainless ,outer,lh		Appelez-nous	-
56	318029502		Trim,bodyside ,stainless ,outer,rh		Appelez-nous	-
57	318072100		Plate,connection		Appelez-nous	-
58	5303311219		Insulation, Oven Top/back		Appelez-nous	-
58	5303311218		Insulation, Oven Wrapper		Appelez-nous	-
59	5303320845		Washer-oven Vent (not Illustrated)		Appelez-nous	-
59	3016331		Tube,oven Vent		Appelez-nous	-
66	5303322963		Element-broil		Appelez-nous	-
67	318255100		Element-bake   (Replaces: 5303299718)			Immediately	$ 204.07
68	5303307563		Support-element		Appelez-nous	-
71	5303305023		Shield-wire		Appelez-nous	-
72	318042800		Cover-light/switch Rod		Appelez-nous	-
76	318056104		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
82	5303304699		Shield-insulation		Appelez-nous	-
83	318089519		Liner-oven Assy				$ 228.80
86	5303310524		Channel-hinge		Appelez-nous	-
88	318013501		Tube, Rod-latch (not Illustrated)		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
89	5303317196		Motor-latch/lock		Appelez-nous	-
96	5303317197		Duct,oven Vent ,assy		Appelez-nous	-
96	3016327		Duct-vent Pipe		Appelez-nous	-
96	3016325		Duct,oven Vent ,center		Appelez-nous	-
97	318066600		Wrapper, Back & Sides		Appelez-nous	-
98	318029310		Trim-side,inner,rh		Appelez-nous	-
98	318029311		Trim-side,inner,lh		Appelez-nous	-
99	5303299686		Support,adjustable		Appelez-nous	-
103	5303316903		Trim-base, Wall, White, Installation				$ 133.46
107	5303318711		Cover,fan		Appelez-nous	-
109	5303311203		Fan Blade				$ 42.84
111	5303311205		Nut-fan Retainer		Appelez-nous	-
111	5303322885		Spacer (not Illustrated)		Appelez-nous	-
119	318005200		Switch-thermal, Lower		Appelez-nous	-
121	318145002		Wrapper,base		Appelez-nous	-
123	318071400		Shield-insulation, Top & Sides		Appelez-nous	-
125	5303311202		Motor-convection				$ 114.07
125	5303320346		Washer, Conv. Motor (not Illustrated)		Appelez-nous	-
126	3016303		Clip-insulator Retainer		Appelez-nous	-
127	318072801		Adaptor Assy		Appelez-nous	-
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
156	5303317198		Bracket-oven Vent		Appelez-nous	-
*53047	3015722		Clip-wire		Appelez-nous	-
*53048	3201861		Screw, 6 X 3/8, (4)				$ 0.76
*53049	08002868		Screw 10 X 24 X 1/2				$ 14.18
*53050	318054900		Support		Appelez-nous	-
*53051	318055200		Support		Appelez-nous	-
*53052	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*53053	5303304015		Washer, Padded		Appelez-nous	-
*53054	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*53055	5303316994		Insulation, Oven Vent		Appelez-nous	-
*53056	5303320846		Plate,oven Mtg				$ 51.50
*53057	318078501		Box & Wires Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
