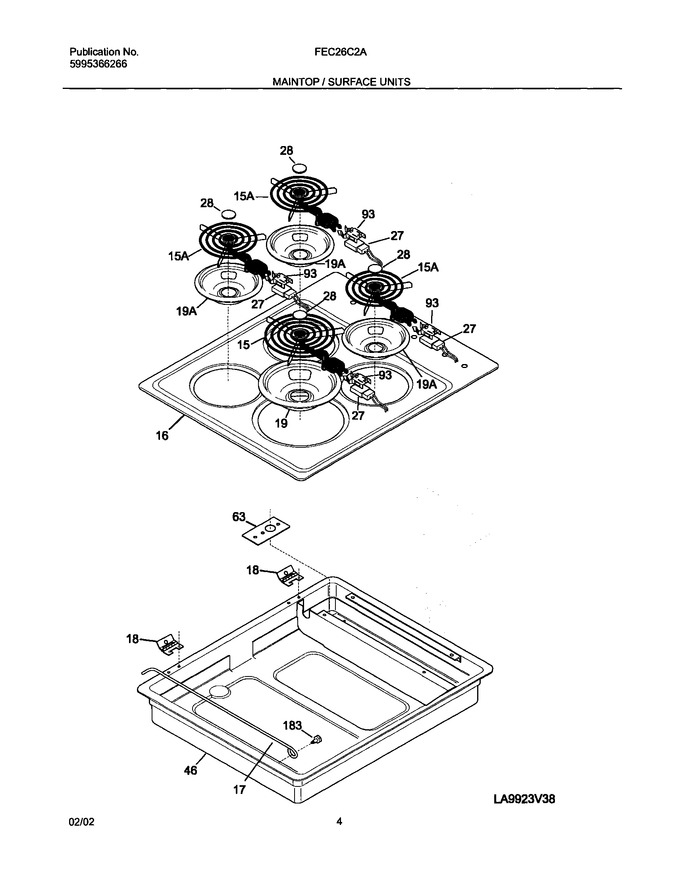

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318159002		Main Top,stainless		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
28	5303309002		Medallion,surface Element ,center Trim		Appelez-nous	-
46	318077312		Burner Box		Appelez-nous	-
63	5303291326		Plate-grounding		Appelez-nous	-
93	5303935058		Bracket-terminal Block   (Replaces: 5303304731)			Immediately	$ 13.81
183	5304410665		Screw,10-32 X 5/8		Appelez-nous	-
F15	5303311320		Element,surface ,large/8 Inch		Appelez-nous	-
F15A	318372210		Element-surface,small/6 Inch   (Replaces: 5303015716)			Immediately	$ 20.21
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	RR500		Terminal Block, Surface Element   (Replaces: 5303323704)			Immediately	$ 9.42
NI	08067961		Fastener-power Cord		Appelez-nous	-
NI	5303311321		Box & Wires Assy		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300195		Screw,10-32 X 0.375 ,terminal Block ,(2)		Appelez-nous	-
