SELECT A DIAGRAM

01 - Cover


03 - Controls


05 - Maintop

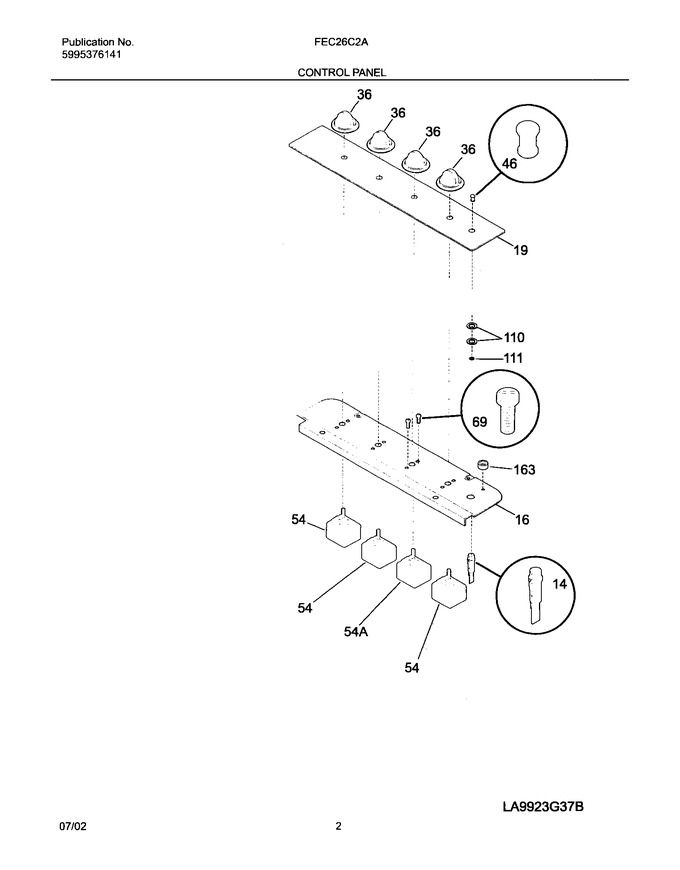

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5303291992		Plate, Instrument Mtg		Appelez-nous	-
19	318020807		Panel,control ,black		Appelez-nous	-
36	318196634		Knob,control ,black				$ 64.50
46	318228310		Lens,indicator Light   (Replaces: 5303297274)			Immediately	$ 22.91
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
110	3201899		Washer,flat		Appelez-nous	-
111	5303272289		Seal-indicator Light		Appelez-nous	-
163	318014100		Spacer		Appelez-nous	-
F14	318044827		Light,indicator ,clear   (Replaces: 318044822)			Immediately	$ 60.25
F54	318220009		Switch,surface Unit ,small		Appelez-nous	-
F54A	318220010		Switch,surface Unit ,large		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318146010		Bushing,switch				$ 17.16
NI	5304410665		Screw,10-32 X 5/8		Appelez-nous	-
NI	3051070		Screw,hex Washer Head ,10-24 X 0.438 ,special		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
