SELECT A DIAGRAM

01 - Cover


02 - Control Panel

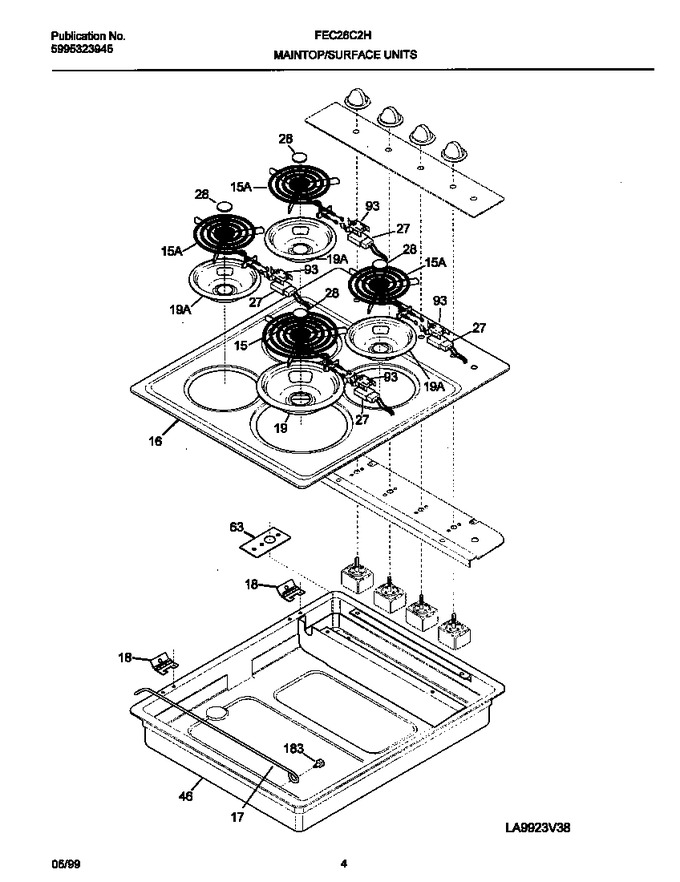

03 - Maintop/elements


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303325933		Element-surface, Small		Appelez-nous	-
15	5303311320		Element-surface, Large		Appelez-nous	-
16	318159002		Main Top,chrome		Appelez-nous	-
17	3051554		Rod Main Top		Appelez-nous	-
18	318074310		Hinge Main Top				$ 51.98
19	316048414		Pan-surface Element,small   (Replaces: 318067021)			Immediately	$ 16.11
19	316048413		Pan-surface Element,large   (Replaces: 318067020)			Immediately	$ 9.85
27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303309002		Medallion, Surface Element		Appelez-nous	-
46	318077312		Burner Box And Support Assembly		Appelez-nous	-
63	5303291326		Plate-grounding		Appelez-nous	-
93	5303935058		Bracket-terminal Block   (Replaces: 5303304731)			Immediately	$ 13.81
183	5304410665		Shoulder Screw		Appelez-nous	-
*63484	08067961		Fastener-power Cord		Appelez-nous	-
*63485	08016432		Screw,8-18 X 3/8		Appelez-nous	-
*63486	5303300195		Screw,10-32 X 3/8		Appelez-nous	-
*63487	5303311321		Box And Wires Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
