New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 318228310 Grate (4)   (Replaces: 5303269632) In-Stock Immediately $ 22.91

2 316010402 Main Top, Almond Appelez-nous -
3 08067747 Bracket-hinge,main Top Rh Appelez-nous -
4 08067746 Bracket-hinge,main Top Lh Appelez-nous -
5 316009242 Panel-manifold Appelez-nous -
6 5303209616 Knob-top Valve, (4) Appelez-nous -
7 316010901 Cap-burner (4) (see L.p. Page) Special Order $ 69.01

8 316011400 Pan-burner Appelez-nous -
9 5303281650 Screw (6) Burner To Cooktop Appelez-nous -
10 316035101 Trim-rings Appelez-nous -
*70793 5303271891 Gusset-mtg Rh Appelez-nous -
*70794 5303271892 Gusset-mtg Lh Appelez-nous -

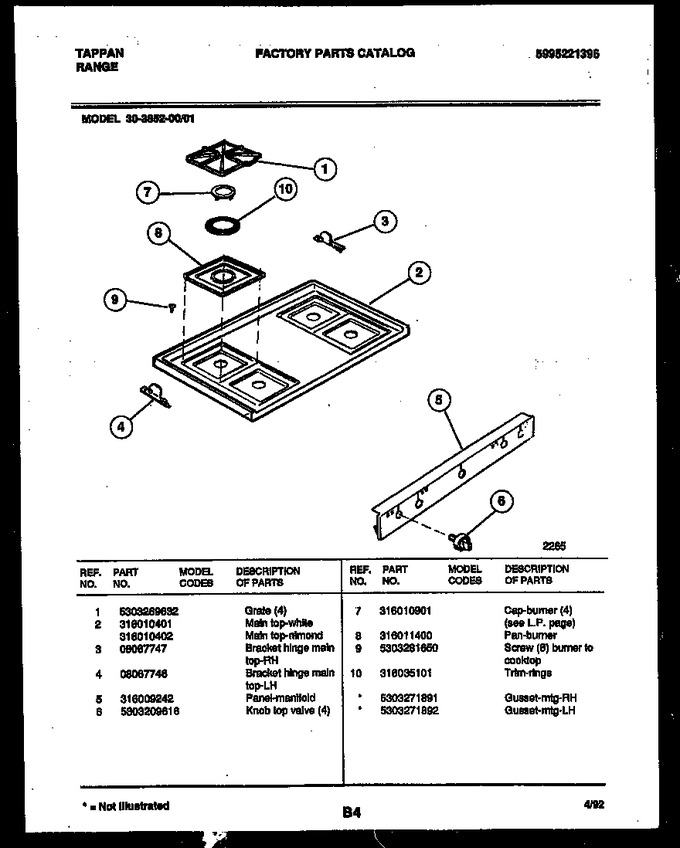

    View Diagram in Separate Window     Print Icon   Print Part List
