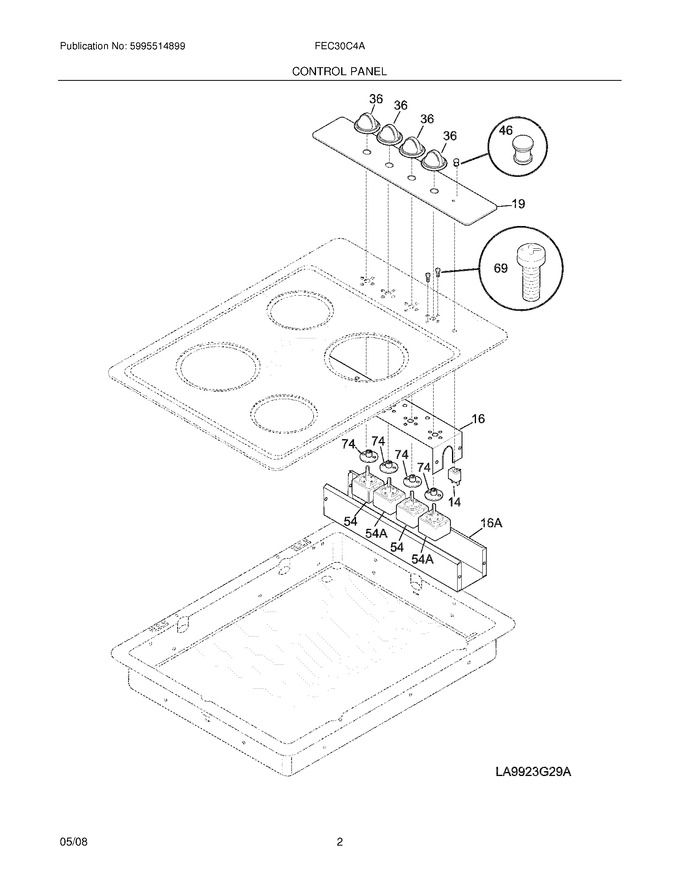

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318286800 | Plate,instrument Mtg |
|
- | |||||
| 19 | 318242302 | Panel,control ,black |
|
$ 170.21 | |||||
| 36 | 318196634 | Knob,control ,black |
|
$ 64.50 | |||||
| 46 | 318228301 | Lens,indicator Light |
|
$ 11.29 | |||||
| 69 | 5304453272 | Screw,mtg. ,no.8-32 X 1/4`` |
|
- | |||||
| 74 | 318146010 | Bushing,switch |
|
$ 17.16 | |||||
| 16A | 5303301457 | Plate, Instrument Mtg |
|
$ 5.99 | |||||
| F14 | 318369500 | Light,indicator ,250v |
|
$ 19.74 | |||||
| F54 | 318293813 | Switch,surface Unit ,small ,single (Replaces: 318369602) |
|
Immediately | $ 82.66 | ||||
| F54A | 318293814 | Switch,surface Unit ,large ,single (Replaces: 318369603) |
|
Immediately | $ 93.29 | ||||
| FNI | 318232414 | Harness,wiring ,indicator Light |
|
- | |||||
| NI | 5304410665 | Screw,10-32 X 5/8 ,(8) |
|
- |
