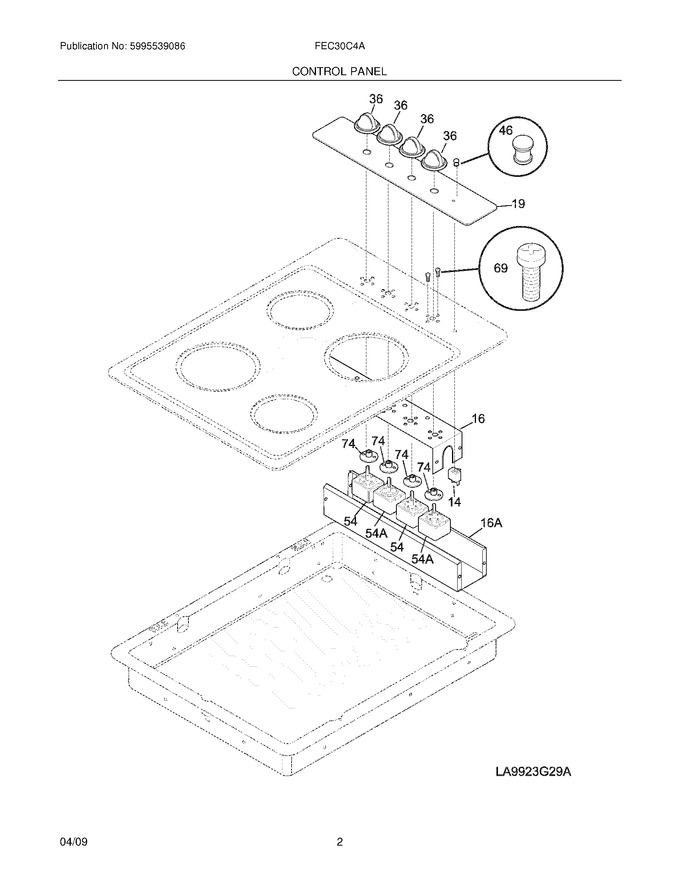

03 - Control Panel
05 - Maintop
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 5303301457 | Plate, Instrument Mtg |
|
$ 5.99 | |||||
| 19 | 318242302 | Panel,control ,black |
|
$ 170.21 | |||||
| 36 | 318196634 | Knob,control ,black |
|
$ 64.50 | |||||
| 46 | 318228310 | Lens-indicator Light (Replaces: 5303299764) |
|
Immediately | $ 22.91 | ||||
| 69 | 5303323137 | Screw,8-32 X 1/4 (Replaces: 5303305528) |
|
$ 11.88 | |||||
| 74 | 318146010 | Bushing,switch |
|
$ 17.16 | |||||
| 16A | 5303301458 | Cover,instrument Mtg. |
|
- | |||||
| F14 | 3200297 | Light-lamp/indicator |
|
- | |||||
| F54 | 318293818 | Switch,surface Unit ,small (Replaces: 318220014) |
|
Immediately | $ 90.30 | ||||
| F54A | 318293827 | Switch,surface Unit ,large (Replaces: 318220015) |
|
Immediately | $ 90.82 | ||||
| NI | 5304410665 | Screw,10-32 X 5/8 ,(8) |
|
- |
