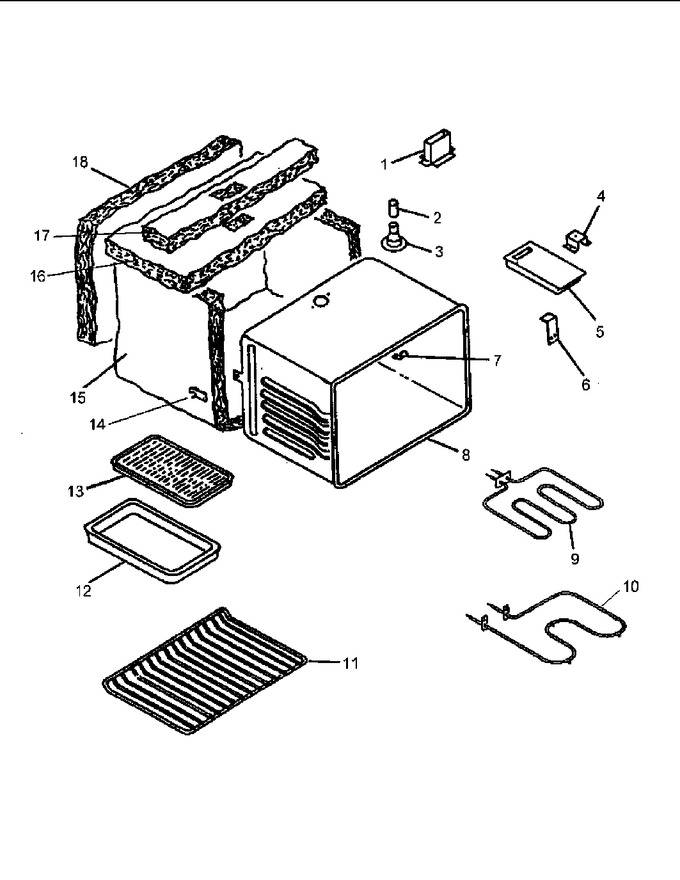

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0059431		Flue Box, Rear		Appelez-nous	-
2	0060633		Tube, Vent Extension		Appelez-nous	-
3	Y0058526		Smoke Eliminator		Appelez-nous	-
4	Y0300632		Mtg. Bracket, Vent		Appelez-nous	-
5	Y0300641		Flue Box		Appelez-nous	-
6	Y0300943		Bracket, Vent Support		Appelez-nous	-
7	Y0315022		Cover, Chip		Appelez-nous	-
8	314698CG		Oven Shell, Electric Dd		Appelez-nous	-
9	Y0060241		Element, Broil (240v-3000w)		Appelez-nous	-
10	WP77001096		Element, Bake (240v-2500w)   (Replaces: Y0300538)				$ 57.67
11	WP314763J		Rack,oven 22 27/32`` X 15 7/16``   (Replaces: 314763J)				$ 70.11
12	4396923		Pan, Broiler (cg)   (Replaces: 314175CG)			Immediately	$ 52.04
13	4396923		Grid, Broiler (cg)   (Replaces: 304451E)			Immediately	$ 52.04
14	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
15	Y0301713		Insulation, Wrapper		Appelez-nous	-
16	0301711		Insulation, Top		Appelez-nous	-
17	0058319		Insulation, Latch		Appelez-nous	-
18	0301712		Insulation, Back		Appelez-nous	-
NI	Y0071914		Screw, Tt Ab No.8 X 3/8``		Appelez-nous	-
NI	Y0091546		Support		Appelez-nous	-
