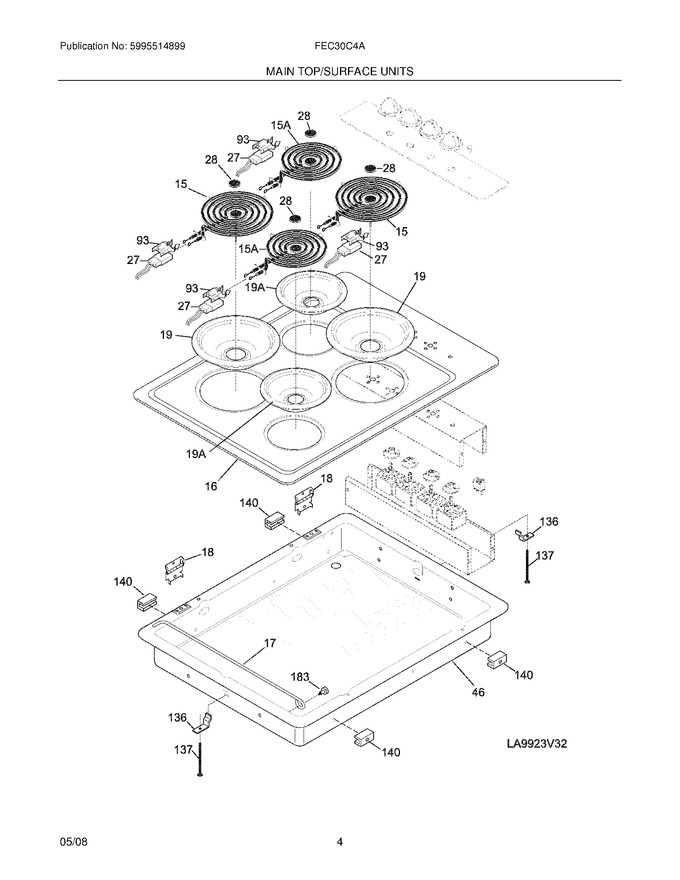

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318159025		Main Top,bisque		Appelez-nous	-
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
28	5303301461		Medallion, Surface Element		Appelez-nous	-
46	318077401		Burner Box		Appelez-nous	-
93	318366410		Support,terminal Block ,(4)				$ 13.47
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
140	318216000		Spacer,installation				$ 54.34
183	5304410665		Screw,10-32 X 5/8 ,(8)		Appelez-nous	-
F15	316442302		Element,surface ,8``/large ,2100w		Appelez-nous	-
F15A	316439802		Element,surface ,6``/small ,1250w			Immediately	$ 192.78
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	318399420		Terminal Block,surface Element ,36`` ,orange Leads		Appelez-nous	-
F27	318399419		Terminal Block,surface Element ,36`` ,brown Leads		Appelez-nous	-
F27	318399409		Terminal Block,surface Element ,24`` ,yellow Leads		Appelez-nous	-
F27	318399407		Terminal Block,surface Element ,21`` ,white Leads		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	318078560		Box & Wires Assy		Appelez-nous	-
NI	5303300195		Screw,10-32 X 0.375 ,terminal Block ,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
