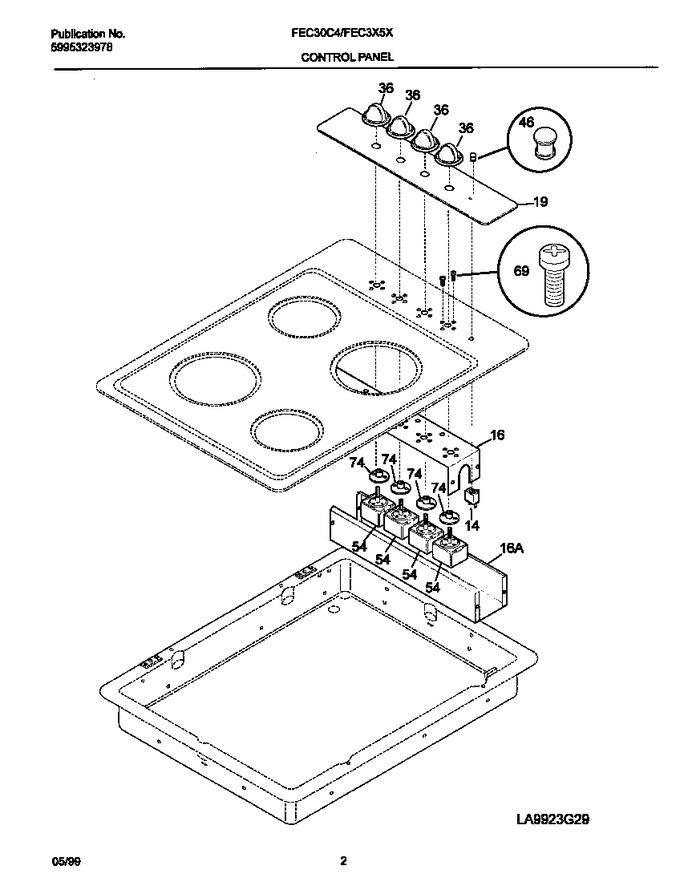

02 - Control Panel


03 - Maintop/elements


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	3200297		Light-lamp/indicator		Appelez-nous	-
16	5303301458		Cover,instrument Mtg.		Appelez-nous	-
16	5303301457		Plate, Instrument Mtg				$ 5.99
19	318021606		Overlay Panel Almond		Appelez-nous	-
19	318021602		Overlay Panel Black		Appelez-nous	-
36	318164505		Knob-surface Unit,black				$ 88.20
46	318228310		Lens-light/lamp, Indicator   (Replaces: 5303299764)			Immediately	$ 22.91
54	5303935086		Switch-surface Unit   (Replaces: 318120504)			Immediately	$ 51.95
69	5303323137		Screw,switch Mtg 8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
74	318146010		Bushing,switch				$ 17.16
*62400	5304410665		Screw,10-32 X 5/8		Appelez-nous	-
*62412	5303288566		Screw-6-20 X 1/4   (Replaces: 5303320848)				$ 2.12
