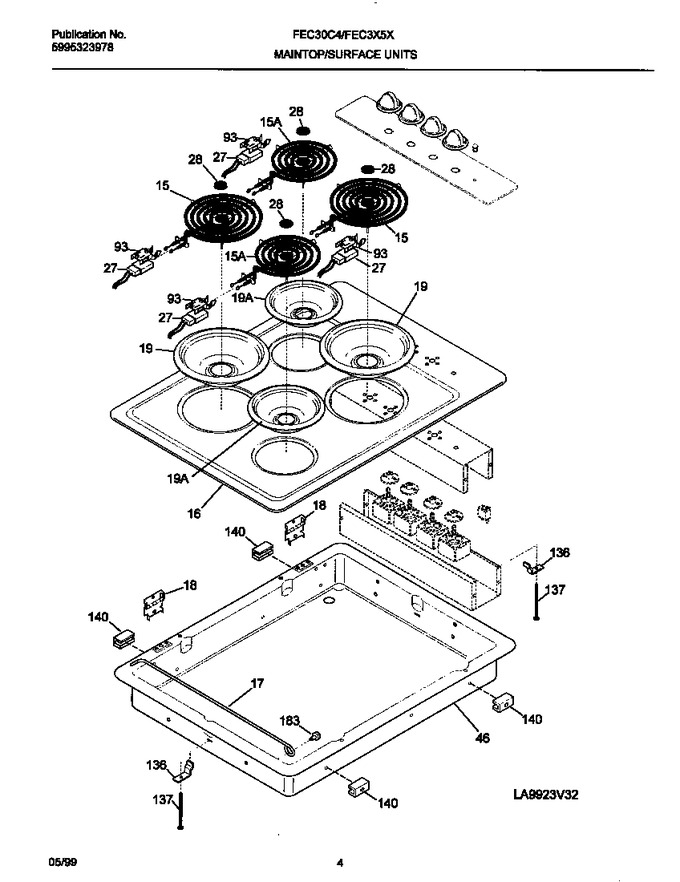

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	316439802		Element-surface 1250w   (Replaces: 5303299749)			Immediately	$ 192.78
15	5308011964		Element-surface 2100w				$ 209.08
16	318159021		Main Top, White				$ 388.24
17	3016817		Rod,maintop Support		Appelez-nous	-
18	318074310		Hinge Main Top				$ 51.98
19	316048413		Pan-surface Element,large   (Replaces: 318067020)			Immediately	$ 9.85
19	316048414		Pan-surface Element,small   (Replaces: 318067021)			Immediately	$ 16.11
27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303301461		Medallion, Surface Element		Appelez-nous	-
46	318077401		Burner Box		Appelez-nous	-
93	318122500		Bracket,terminal Block		Appelez-nous	-
136	5303935029		Support/support				$ 61.79
137	5303323138		Screw, 10-24 X 2 1/2				$ 14.13
140	3205315		Spacer		Appelez-nous	-
183	5304410665		Shoulder Screw		Appelez-nous	-
*62401	5301506869		Clamp-cable		Appelez-nous	-
*62402	5303300195		Screw, Terminal Block		Appelez-nous	-
*62403	5303308449		Fastener		Appelez-nous	-
*62404	5303311532		Screw,6-32 X 1/4		Appelez-nous	-
*62405	5303323364		Box & Wires Assy		Appelez-nous	-
*62406	5303311532		Screw,6-32 X 1/4		Appelez-nous	-
*62407	5304403070		Screw, 6-32 X 5/16		Appelez-nous	-
*62408	5303288566		Screw,6-32 X 5/16   (Replaces: 5303324512)				$ 2.12
*62409	5303323139		Shoulder Screw, 10-32 X 5/8				$ 13.46
*62410	5303325982		Nut, 10-32		Appelez-nous	-
*62411	5303288566		Screw-6-20 X 1/4   (Replaces: 5303320848)				$ 2.12
