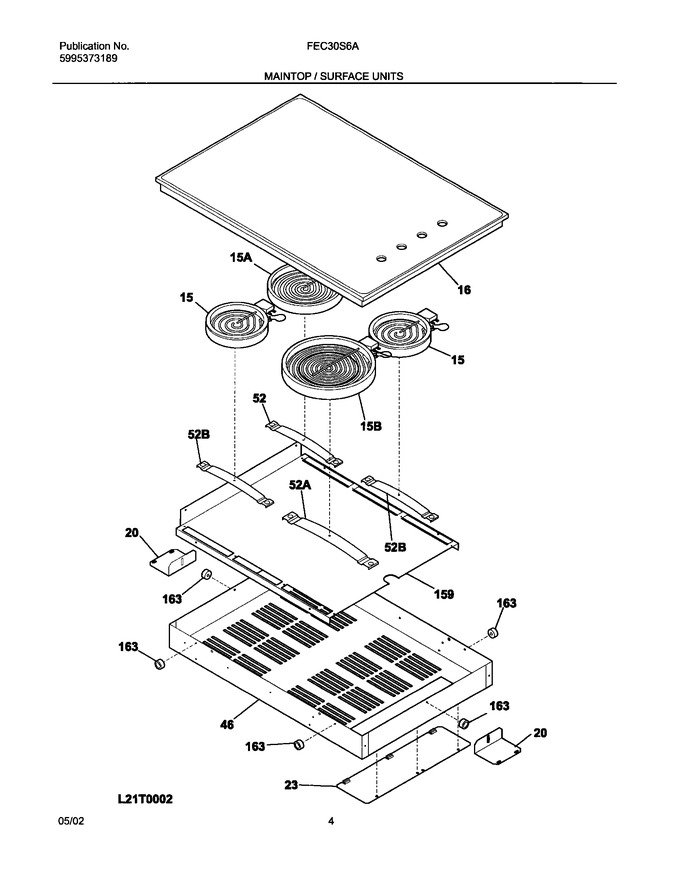

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079348		Main Top,black				$ 922.58
20	318121902		Bracket,retainer				$ 47.03
23	318194703		Panel,service ,black		Appelez-nous	-
46	318077214		Burner Box		Appelez-nous	-
52	318122007		Spring,element Mtg ,large				$ 53.45
159	318125112		Deflector		Appelez-nous	-
163	08007817		Spacer,(6)		Appelez-nous	-
52A	318122010		Spring,element Mtg ,1000w/2500w				$ 62.51
52B	318122006		Spring,element Mtg ,small				$ 66.25
F15	318198817		Element,surface ,6`` ,1200 W   (Replaces: 318198810)			Immediately	$ 192.78
F15A	903118-9010		Element,surface ,8`` ,2200 W   (Replaces: 318198812)			Immediately	$ 236.18
F15B	316135401		Element,surface ,9`` ,2500w ,radiant   (Replaces: 316224200)			Immediately	$ 80.96
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303323364		Box & Wires Assy		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
