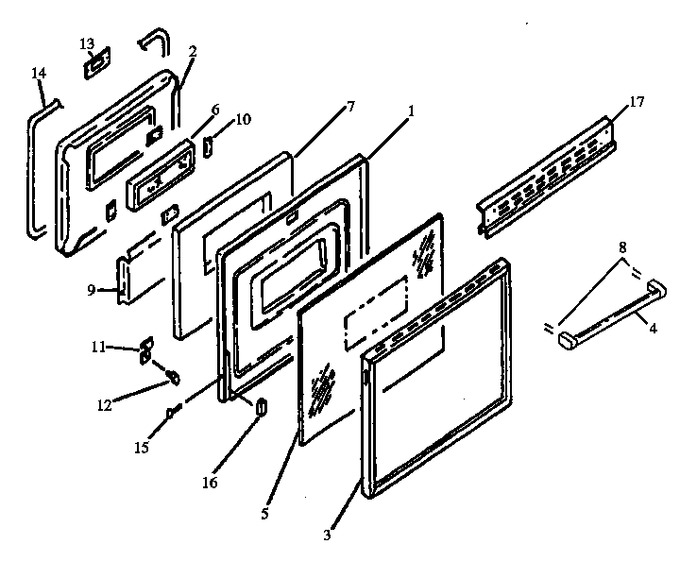

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302723CG		Door Backer		Appelez-nous	-
2	58808CG		Pad, Ov Dr W/window		Appelez-nous	-
3	308071W		Frame, Oven Door (white)		Appelez-nous	-
4	0305520		Kit, Dr Hndl/trim (white)		Appelez-nous	-
5	0302466		Glass, Oven Door, White		Appelez-nous	-
6	0304831		Window Assy		Appelez-nous	-
7	0062614		Insulation,door-sub Backer		Appelez-nous	-
8	Y0079863		Screw, No.10-24x3/8 (ph Trs Hd)		Appelez-nous	-
9	306467B		Baffle, Oven Door (black)		Appelez-nous	-
10	Y0052629		Retainer, Door Glass		Appelez-nous	-
11	Y0062439		Support Bracket, Glass		Appelez-nous	-
12	Y0063661		Bumper, Oven Door		Appelez-nous	-
13	Y0052039		Latch Plate		Appelez-nous	-
14	Y0300432		Gasket, Oven Dr 82``		Appelez-nous	-
15	Y0302648		Rivet, Pop		Appelez-nous	-
16	Y0060247		Bumper, Rubber		Appelez-nous	-
17	0305526		Kit, Dr Hndl/trim (white)		Appelez-nous	-
NI	Y0307910		Support, Door Glass		Appelez-nous	-
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: Y0041809)			Immediately	$ 12.65
NI	Y0308806		Label, Cleaning		Appelez-nous	-
NI	0300584		Label,cleaning Instr.		Appelez-nous	-
