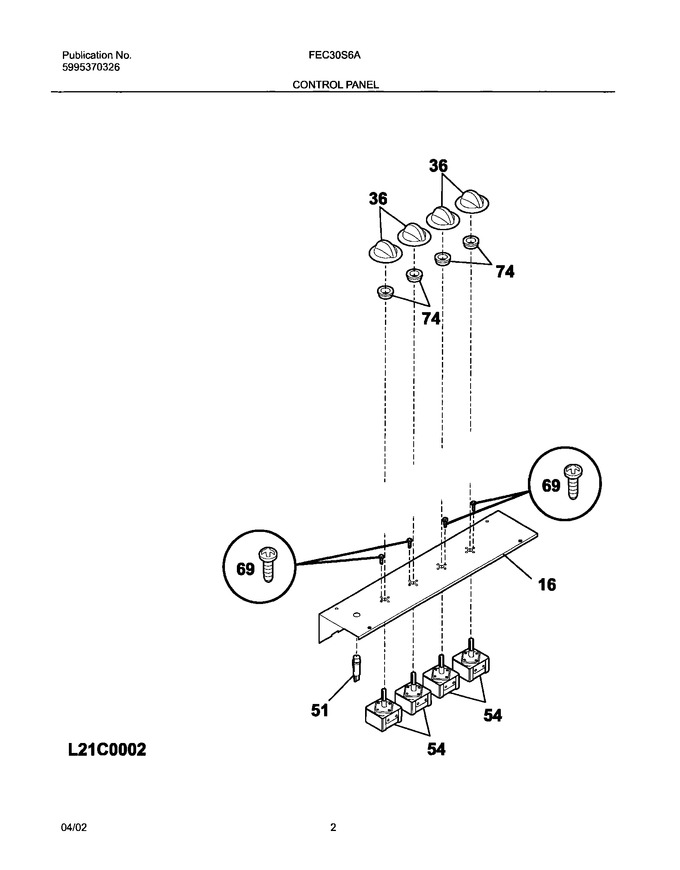

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318096326		Box,instrument Mtg		Appelez-nous	-
36	318196633		Knob,control ,white				$ 62.95
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
74	5303321205		Bushing		Appelez-nous	-
F51	318044820		Light,indicator ,red		Appelez-nous	-
F54	318120505		Switch,surface Unit ,small/large				$ 91.35
NI	5303307980		Screw,8-32 X 0.437			Immediately	$ 14.18
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
