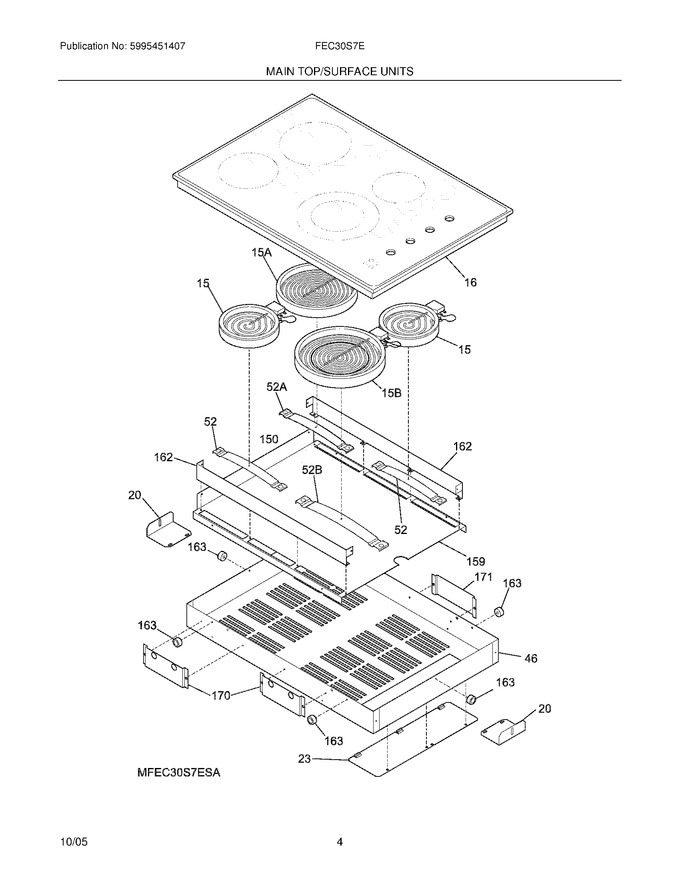

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079423		Main Top,black		Appelez-nous	-
20	318121902		Bracket,retainer				$ 47.03
23	318194703		Panel,service ,black		Appelez-nous	-
46	318077232		Burner Box		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
159	318125113		Deflector		Appelez-nous	-
162	318161401		Deflector		Appelez-nous	-
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
170	318124911		Screen,thermal		Appelez-nous	-
171	318124912		Screen,thermal ,(9)		Appelez-nous	-
52A	318122007		Spring,element Mtg ,large				$ 53.45
52B	318122010		Spring,element Mtg ,1000w/2500w				$ 62.51
F15	318198817		Element,surface ,6`` ,1200 W ,(2)			Immediately	$ 192.78
F15A	318198823		Element,surface ,9`` ,large ,2700 W				$ 235.73
F15B	318198925		Element,surface ,6/9 ,1200/2500w ,dual Radiant			Immediately	$ 283.81
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318078529		Box & Wires Assy		Appelez-nous	-
NI	318199429		Harness,wiring		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
