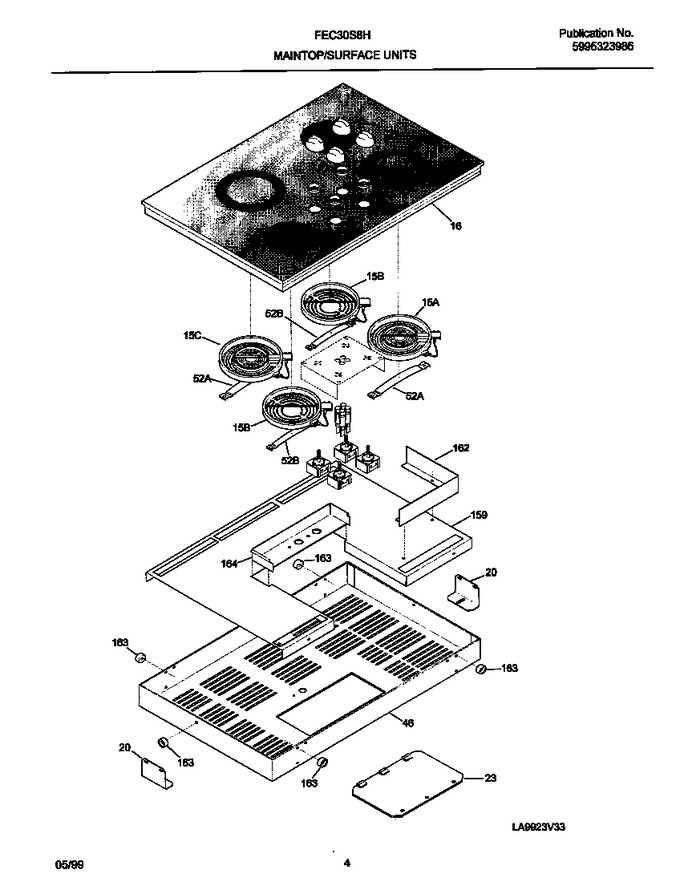

03 - Maintop/elements


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318198817		Element-surface, 2100w   (Replaces: 318178100)			Immediately	$ 192.78
15	318178002		Element-surface,1000/2000w		Appelez-nous	-
15	318178000		Element-surface, 700/2100w		Appelez-nous	-
16	318079317		Glass Main Top And Frame Assembly		Appelez-nous	-
20	318121902		Bracket				$ 47.03
23	5303297401		Panel-access		Appelez-nous	-
46	318077211		Burner Box		Appelez-nous	-
52	318122007		Spring Element Mtg				$ 53.45
52	318122006		Spring Element Mtg				$ 66.25
159	318125111		Deflector		Appelez-nous	-
162	318125200		Deflector		Appelez-nous	-
163	08007817		Spacer		Appelez-nous	-
164	318125301		Plate-connection		Appelez-nous	-
*84520	318078508		Box & Wires Assy		Appelez-nous	-
*84521	5303323129		Screw,8 X 3/4		Appelez-nous	-
*84522	5303323140		Screw Ground		Appelez-nous	-
*84523	5303323131		Screw,8-32 X 7/16		Appelez-nous	-
*84524	08016432		Screw,8-18 X 3/8		Appelez-nous	-
