SELECT A DIAGRAM

01 - Cover


03 - Controls


05 - Maintop

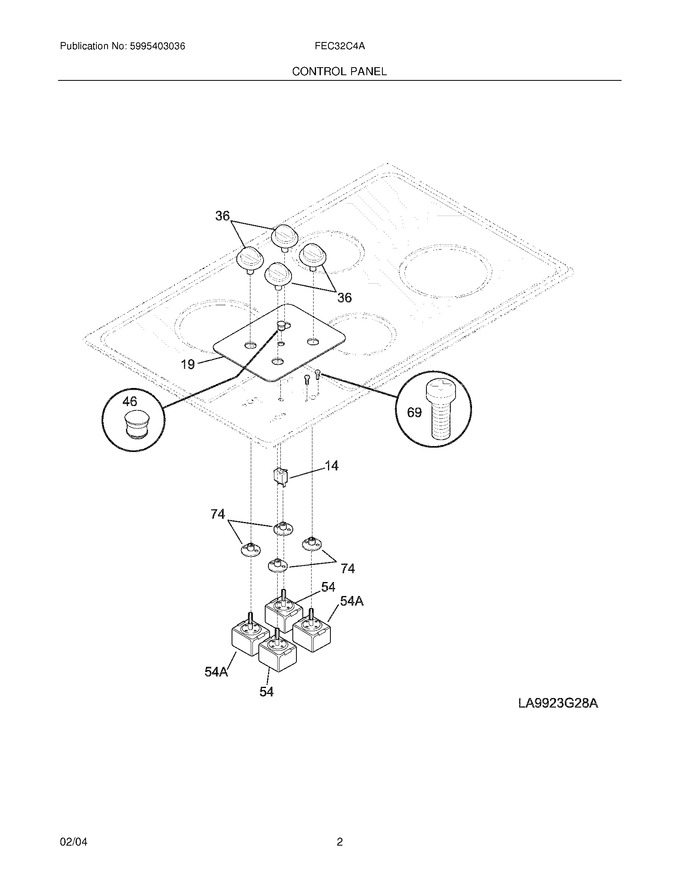

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5303276663		Indicator - Light				$ 59.12
19	318183503		Insert,bisque		Appelez-nous	-
36	318196635		Knob,control ,bisque		Appelez-nous	-
46	5303200418		Lens, Indicator Light		Appelez-nous	-
69	5303323137		Screw,8-32 X 1/4   (Replaces: 5303305528)				$ 11.88
74	318146010		Bushing,switch				$ 17.16
F54	318293818		Switch,surface Unit ,small   (Replaces: 318220014)			Immediately	$ 90.30
F54A	318293827		Switch,surface Unit ,large   (Replaces: 318220015)			Immediately	$ 90.82
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18

    View Diagram in Separate Window       Print Part List
