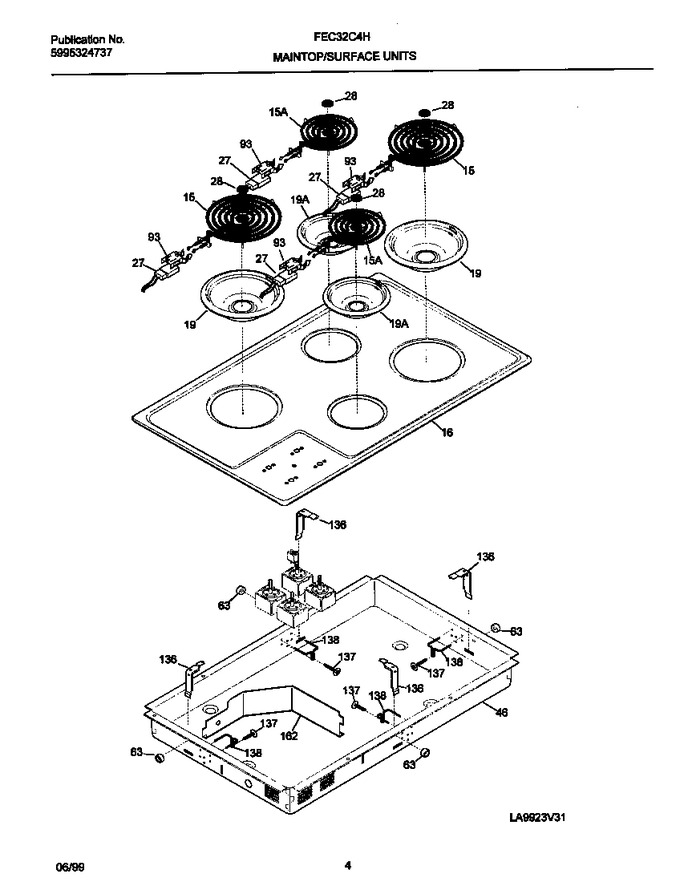

03 - Maintop/elements


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5308011964		Element-surface 2100w				$ 209.08
15	316439802		Element-surface 1250w   (Replaces: 5303299749)			Immediately	$ 192.78
16	5303299758		Main Top Chrome		Appelez-nous	-
19	316048414		Pan-surface Element   (Replaces: 318067021)			Immediately	$ 16.11
19	316048413		Pan-surface Element   (Replaces: 318067020)			Immediately	$ 9.85
27	RR500		Terminal Block   (Replaces: 5303323704)			Immediately	$ 9.42
28	5303301461		Medallion, Surface Element		Appelez-nous	-
46	5304410269		Burner Box		Appelez-nous	-
63	08007817		Spacer		Appelez-nous	-
93	318122500		Support Terminal Block		Appelez-nous	-
136	3008711		Bracket-mtg		Appelez-nous	-
137	5303306669		Screw, 10-16 X 1-1/2		Appelez-nous	-
138	08016269		Support Fixation		Appelez-nous	-
162	3008713		Shield, Wire		Appelez-nous	-
*39163	5303300195		Screw,10-32 X 3/8		Appelez-nous	-
*39164	5303323364		Box And Wires Assembly		Appelez-nous	-
*39165	5303323140		Screw Ground		Appelez-nous	-
*39166	08002868		Screw 10 X 24 X 1/2				$ 14.18
*39167	5303288566		Screw,6-32 X 5/16   (Replaces: 5303324512)				$ 2.12
