01 - Cover

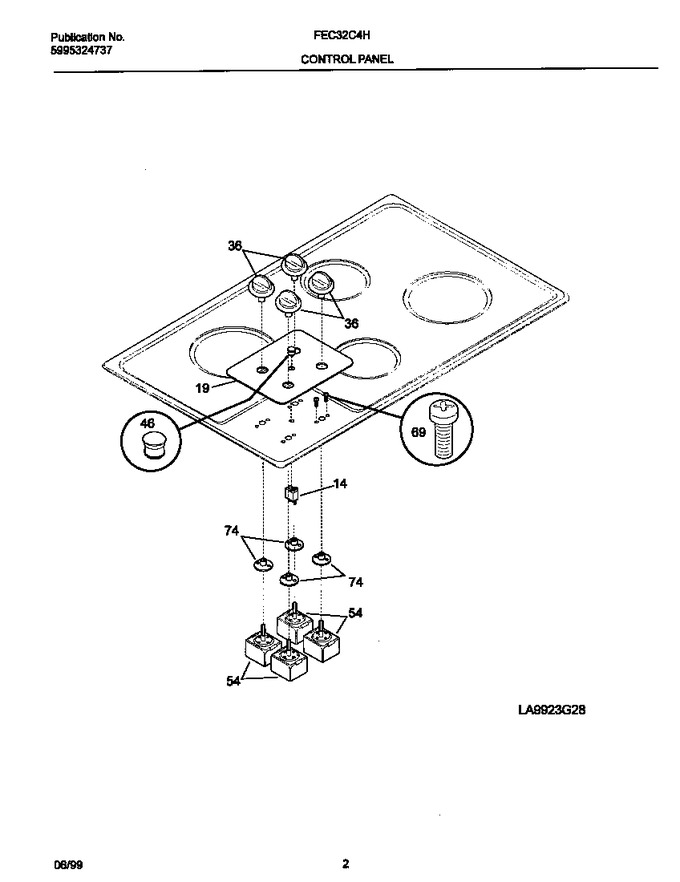

02 - Control Panel
03 - Maintop/elements
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 5303323991 | Pilot Light |
|
$ 26.25 | |||||
| 19 | 318183500 | Overlay Panel White |
|
- | |||||
| 36 | 318164500 | Knob-surface Unit,white |
|
$ 91.30 | |||||
| 46 | 5303200418 | Lens Pilot Light |
|
- | |||||
| 54 | 5303935086 | Switch-surface Unit (Replaces: 318120504) |
|
Immediately | $ 51.95 | ||||
| 69 | 5303323137 | Screw,switch Mtg 8-32 X 1/4 (Replaces: 5303305528) |
|
$ 11.88 | |||||
| 74 | 318146010 | Bushing |
|
$ 17.16 | |||||
| *39160 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *39161 | 5303308449 | Fastener |
|
- | |||||
| *39162 | 5303323140 | Screw Ground |
|
- |
