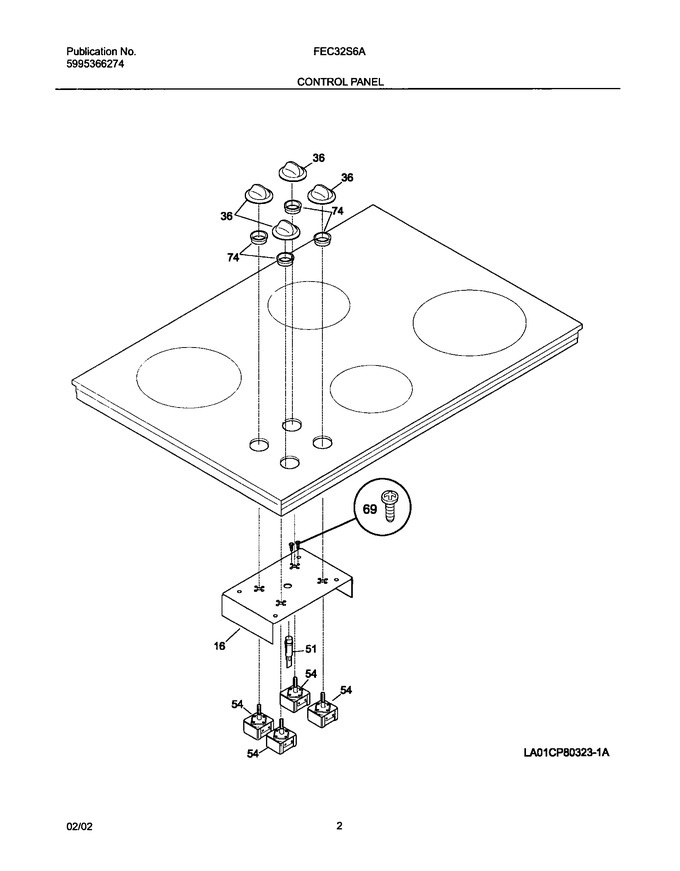

03 - Control Panel


05 - Main Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318096300		Plate, Instrument Mtg		Appelez-nous	-
36	318196634		Knob,control ,black				$ 64.50
69	5303288565		Screw,switch Mtg. ,8-32 X 0.188   (Replaces: 5303323134)				$ 3.12
74	5303321205		Bushing		Appelez-nous	-
F51	318044827		Light,indicator ,clear   (Replaces: 318044822)			Immediately	$ 60.25
F54	318120505		Switch,surface Unit ,small/large				$ 91.35
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
NI	5303323131		Screw,8-32 X 7/16		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
