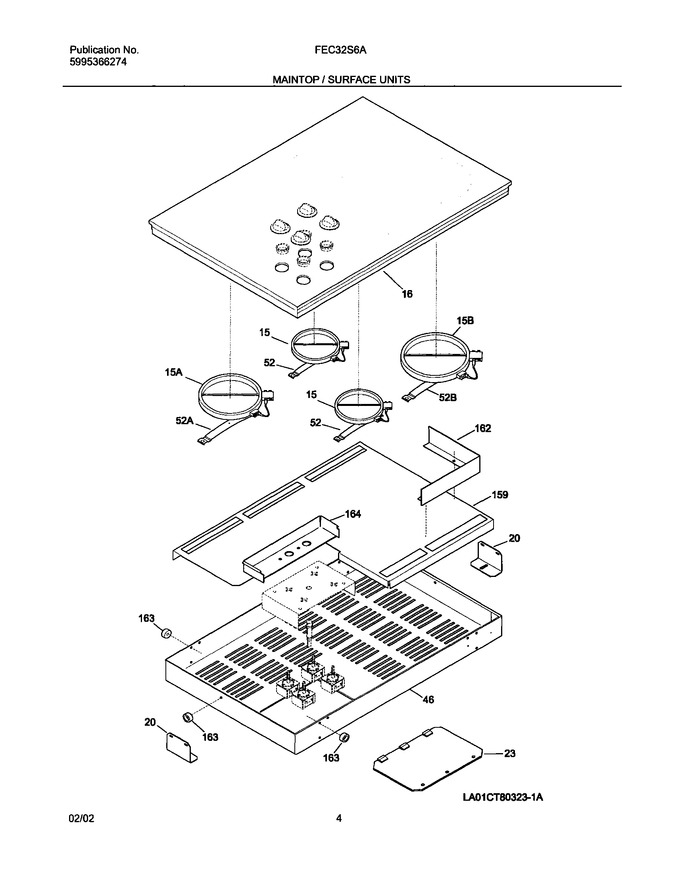

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079349		Main Top Assy,glass/steel ,white		Appelez-nous	-
20	318121902		Bracket,retainer				$ 47.03
23	5303297401		Panel,service		Appelez-nous	-
46	318077201		Burner Box		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
159	318125101		Deflector		Appelez-nous	-
162	318125200		Deflector		Appelez-nous	-
163	08007817		Spacer,(6)		Appelez-nous	-
164	318125302		Plate,connection		Appelez-nous	-
52A	318122007		Spring,element Mtg ,large				$ 53.45
52B	318122010		Spring,element Mtg ,1000w/2500w				$ 62.51
F15	318198817		Element,surface ,6`` ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15A	318198834		Element,surface ,8`` ,2200 W ,radiant   (Replaces: 316010206)				$ 205.36
F15B	316135401		Element,surface ,9`` ,2500w ,radiant   (Replaces: 316224200)			Immediately	$ 80.96
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318078523		Box & Wires Assy		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303323131		Screw,8-32 X 7/16		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
