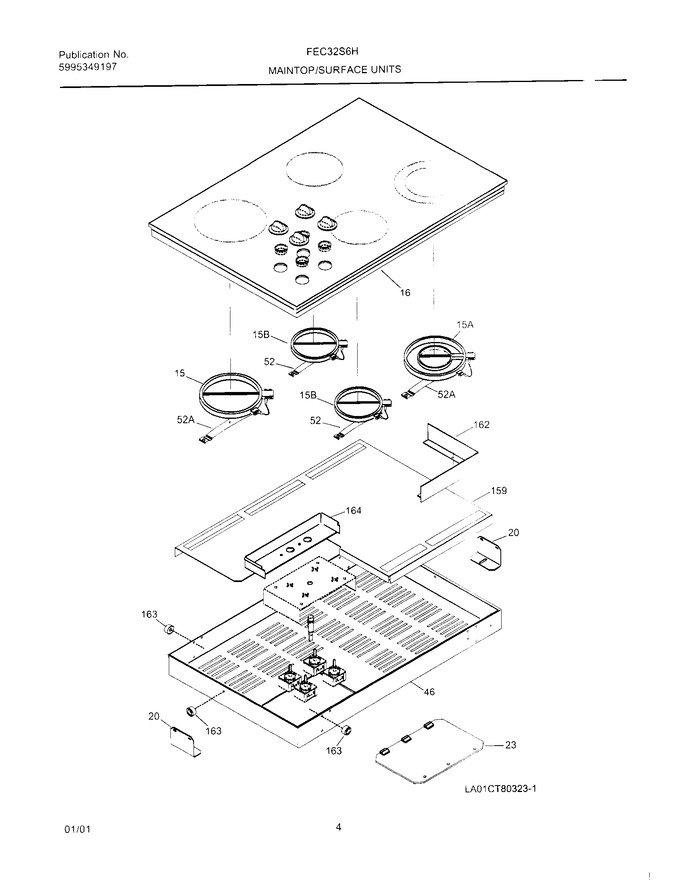

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	318178002		Element-surface,dual ,6/9 Inches ,1000/2000w		Appelez-nous	-
15	903118-9010		Element-surface,radiant ,large/8 Inch ,2100 W   (Replaces: 318178101)			Immediately	$ 236.18
15	318198817		Element-surface,radiant ,small/6 Inch ,1200 W   (Replaces: 318178100)			Immediately	$ 192.78
16	318079300		Main Top, Black		Appelez-nous	-
20	318121902		Bracket				$ 47.03
23	5303297401		Panel-access		Appelez-nous	-
46	318077201		Burner Box		Appelez-nous	-
52	318122007		Spring-element Mtg,2100w ,large				$ 53.45
52	318122006		Spring-element Mtg,1200w & 1800w ,small				$ 66.25
54	318191000		Infinite Switch(1.47)duo			Immediately	$ 102.48
162	318125200		Deflector		Appelez-nous	-
163	08007817		Spacer, (2)		Appelez-nous	-
164	318125301		Plate-connection		Appelez-nous	-
NI	08016432		Screw,truss Head ,8-18 X 0.375 ,(4)		Appelez-nous	-
NI	5303323129		Screw,8 X 3/4		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303323131		Screw,8-32 X 7/16		Appelez-nous	-
NI	5303323364		Box & Wires Assy		Appelez-nous	-
