01 - Cover

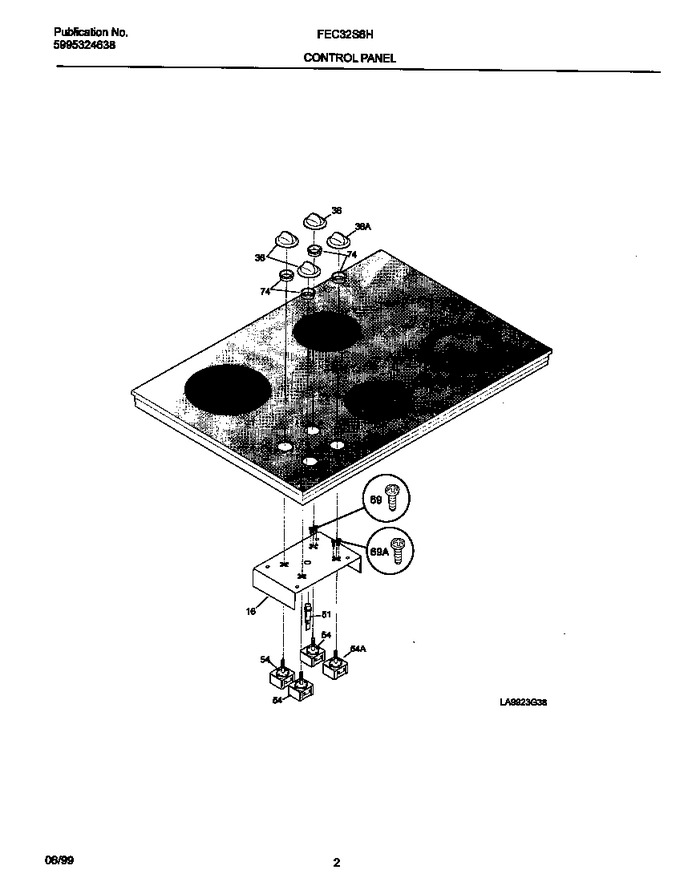

02 - Control Panel


03 - Maintop/elements


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318096300		Plate, Instrument Mtg		Appelez-nous	-
36	318164501		Knob-surface Unit White		Appelez-nous	-
36	318164500		Knob-surface Unit,white				$ 91.30
51	5303297484		Light-indicator		Appelez-nous	-
54	318120505		Switch-surface Unit				$ 91.35
54	318078200		Switch-surface Unit Dual		Appelez-nous	-
69	5303288565		Screw, Switch Mtg 8-32 X 1/4   (Replaces: 5303323134)				$ 3.12
69	5303323137		Screw, Switch Mtg 8-32 X 3/16   (Replaces: 5303305528)				$ 11.88
74	5303321205		Bushing		Appelez-nous	-
*12720	5303323131		Screw,8-32 X 7/16		Appelez-nous	-
*12721	5303300265		Screw, 8-18 X 1/2				$ 15.17
*12722	5303323140		Screw Ground		Appelez-nous	-
