SELECT A DIAGRAM

01 - Cover


03 - Controls

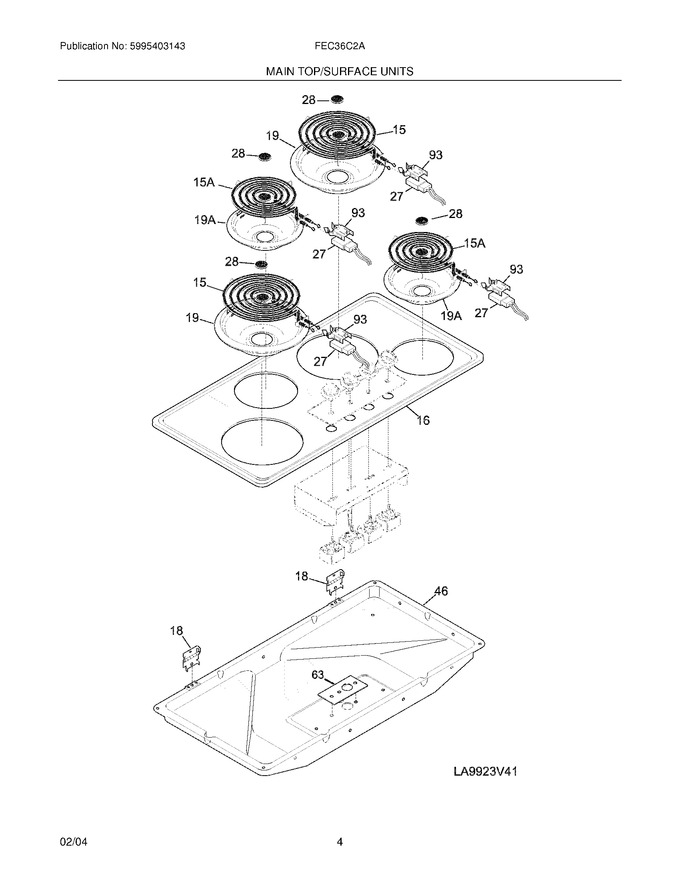

05 - Main Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318159044		Main Top,bisque		Appelez-nous	-
18	318074310		Hinge-main Top, (2)				$ 51.98
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
46	318077121		Burner Box		Appelez-nous	-
63	5303291326		Plate-grounding		Appelez-nous	-
93	5303935058		Bracket-terminal Block   (Replaces: 5303304731)			Immediately	$ 13.81
F15	3051450		Element,surface ,8`` Large		Appelez-nous	-
F15A	3051449		Element,surface ,6`` Small		Appelez-nous	-
F19	316048413		Pan,surface Element ,large ,chrome   (Replaces: 318067056)			Immediately	$ 9.85
F19A	316048414		Pan,surface Element ,small ,chrome   (Replaces: 318067046)			Immediately	$ 16.11
F27	318223424		Terminal Block,surface Element ,36`` ,orange Leads				$ 72.35
F27	318223412		Terminal Block,surface Element ,30`` ,white Leads		Appelez-nous	-
F27	318223404		Terminal Block,surface Element ,39`` ,brown Leads		Appelez-nous	-
F27	318223403		Terminal Block,surface Element ,30`` ,yellow Leads		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318078532		Box & Wires Assy		Appelez-nous	-
NI	5303324001		Spacer		Appelez-nous	-
NI	5303311532		Screw,6-32 X 1/4`` ,back		Appelez-nous	-
NI	5303300195		Screw,10-32 X 0.375 ,terminal Block ,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
